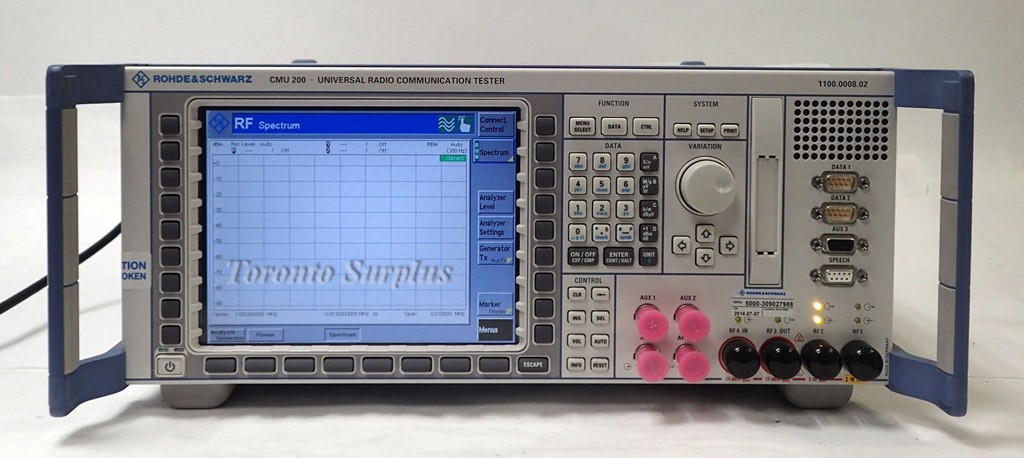

The  CMU200 1100.0008.02 Multiprotocol Tester for Today´s Mobile Radio Networks

The R&S CMU200 universal radio communication tester brings cost effectiveness through a variety of features, with extremely fast measurement speed and very high accuracy.
Key Advantages
Speed: Unrivaled speed of single measurements
Accuracy: Incomparable accuracy & Excellent result repeatability:
Modularity: Modular hardware and software concept provides easy expansion to further functionality
Reliability: Extremely low power consumption and effective heat conduction result in unparalleled reliability

Hardware Options:

CMU-B21v14             Universal Signalling Unit
CMU-B41                   Audio Measurement Unit
CMU-B52v14             Speech Coder f CMU-B21v14
CMU-B53v14             Signalling Module f. GSM, TDMA, AMPS
CMU-B56v14             Signalling Module f. WCDMA
CMU-B68                   Versatile Base Band Unit TX+RX Version 3.04
CMU-B83                   CDMA2000 Signalling Unit X3.26d (Var.22)
CMU-B89                   CDMA2000/1xEV-DO Sign Unit Revision 1
CMU-B95                   Additional RF Generator
CMU-U61                   PCMCIA
CMU-U65v04             DSP f. Wideband Measurement

Software Options:

CMU-K16 WCDMA-UE Band10 Signalling V5.20
CMU-K17 WCDMA-UE Band>10 Signalling V5.20
CMU-K20 GSM400-MS V5.22
CMU-K20 GSM900-MS V5.22
CMU-K20 GSM1800-MS V5.22
CMU-K20 GSM850-MS V5.22
CMU-K27 IS136GT800-MS V5.22
CMU-K28 IS136GT1900-MS V5.22
CMU-K29 AMPS-MS V5.22
CMU-K42 GPRS@GSM-MS V5.22
CMU-K43 EGPRS@GSM-MS V5.22
CMU-K47 Smart Alignment V5.22
CMU-K57 WCDMA-UE Band7 Signalling V5.20
CMU-K58 WCDMA-UE Band8 Signalling V5.20
CMU-K59 WCDMA-UE Band9 Signalling V5.20
CMU-K61 WCDMA-UE Band4 Signalling V5.20
CMU-K62 WCEMA-UE Band5 Signalling V5.20
CMU-K63 WCEMA-UE Band6 Signalling V5.20
CMU-K64 HSDPA 3.6Mbps @ WCDMA-UE V5.20
CMU-K65 WCDMA-UE TX-TESTS (3GPP/FDD) V5.20
CMU-K66 WCDMA-UE DL-GENERATOR (3Mbps) V5.20
CMU-K67 WCDMA-UE Band3 Signalling V5.20
CMU-K68 WCDMA-UE Band1 Signalling V5.20
CMU-K69 WCDMA-UE Band2 Signalling V5.20
CMU-K83 CDMA2000 (450MHz) V5.20
CMU-K84 CDMA2000 (800MHz) V5.20
CMU-K85 CDMA2000 (1900MHz) V5.20
CMU-K86 CDMA2000 (2200MHz) V5.20
CMU-K88 1xEV-DO V5.20
CMU-K839 1xEV-DO (450MHz) for CMU-B89 V5.20
CMU-K849 1xEV-DO (CELLULAR) for CMU-B89 V5.20
CMU-K859 1xEV-DO (PCS) for CMU-B89 V5.20
CMU-K869 1xEV-DO (IMT-2000) for CMU-B89 V5.20


Applications
•    RF development
•    Module design
•    Module test in production
•    Adjustment of mobile phones
•    Final test in production
•    Functional test
•    Feature test
•    High-end service
•    Quality inspection
•    Basis for test systems
•    Base station simulation


41½lbs. 20½x18½x8. J36
