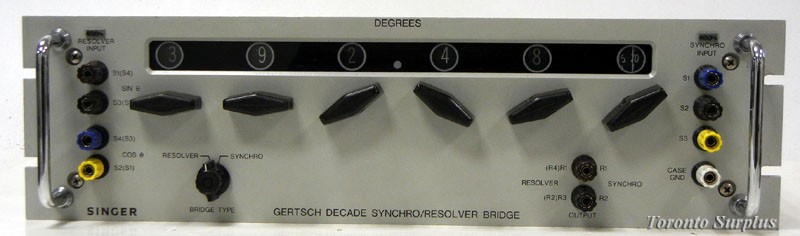

    Singer DSRB-5C-4R Gertsch Decade Synchro / Resolver Bridge

    Double click on above image to view full picture

    More Views

    • Singer DSRB-5C-4R Gertsch Decade Synchro / Resolver Bridge

    Ailtech Singer Gertsch / Tegam / Eaton DSRB-5CD-4R Decade Synchro / Resolver Bridge R/S Input 400 Hz


    Part Number: sku9813
    US$1,800.00
    Add Items to Cart
    Quantity in Stock: 4

    Ask a Question

    Product Description

    The Model DSRB combines the functions of a synchro bridge and a high resolution resolver bridge into a single unit. A front panel switch changes the unit from one mode of operation to the other.

    The DSRB-5CD-4R Decade Synchro/ Resolver Bridge works in two ways:
    In resolver mode, the resolver bridge uses precision transformers to form a voltage comparator bridge.
    In synchro mode, the three wire input is converted to two voltage signals in a Scott-tee transformer arrangement.

    • Frequency: 400 Hz
    •  2 seconds-of-arc accuracy
    • Angular range: 0....360°
    • Angular increments: 0.0001°
    • Full 360° rotation with direct angular readout 0.0001° resolution
    • Isolated and shielded input and output
    • Unity transformation ratio
    • Constant error voltage gradient
    • Both synchro and resolver input terminals
    • Front and rear 5-way binding posts
    • All terminals color-coded per Mil-Spec

    Additional specifications available upon request.
