Product Description

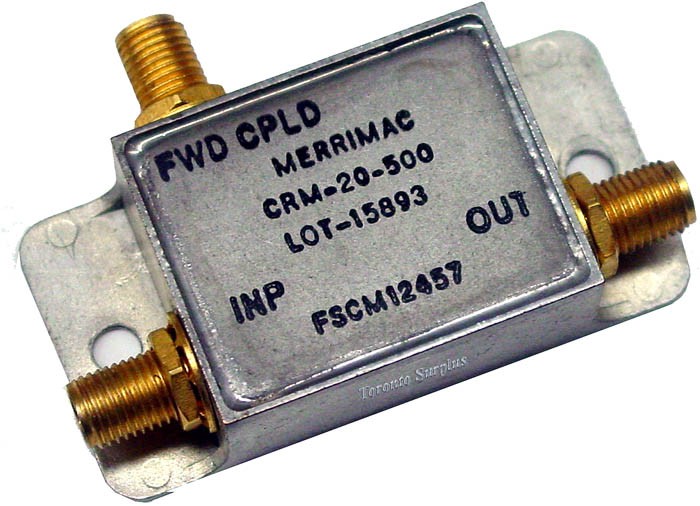

Merrimac CRM-20-500 FWD CPLD RF Directional Coupler
- Frequency Range: 10-1000 MHz
- Operating Bandwidth: 10-500 MHz
Coupling Tolerance: 20 ± 1.0 dB max.
Frequency Sensitivity: ± 0.5 dB max.
Directivity: 20 dB min.
Insertion Loss: 1.0 dB max.
VSWR Main Arm: 1:3:1
VSWR Cpld Arm: 1:3:1
- Operating Bandwidth: 500-1000 MHz
Coupling Tolerance: 20 ± 1.0 dB max.
Frequency Sensitivity: ± 1.0 dB max.
Directivity: 15 dB min.
Insertion Loss: 1.5 dB max.
VSWR Main Arm: 1:35:1
VSWR Cpld Arm: 1:35:1
