Product Description
The 2398 is a portable monochrome LCD spectrum analyzer suited for signal analysis of radio equipment. The 2398 adopts the synthesizer local system and can cover all frequencies for 9 kHz to 2.7 GHz. Excellent in basic performance such as distortion, frequency/level accuracy, and easily operable by following the display of the soft-key menu screen.
APPLICATIONS:
- Production, buliding and maintenance of electronic equipment and devices for the following:
- AM/FM radio equipment
- Digital cellular telephone / cordless telephone
- Satellite broadcasting
- CATV and TV equipment
- Small capacity microwave equipment
SPECIFICATIONS:
- Frequency Range - 9 kHz to 2.7 GHz
- Tuning Resolution - 1 Hz min
- Amplitude Range - +20 to -105 dBm
- Attenuator: 0-50 dB, 10 dB steps
- Sweep Rate: 50 ms to 1000 sec in 1-2-5 sequience, 5 ms to 20 sec (zero span)
Includes RS-232C & PCMCIA Card Interface (No GPIB)

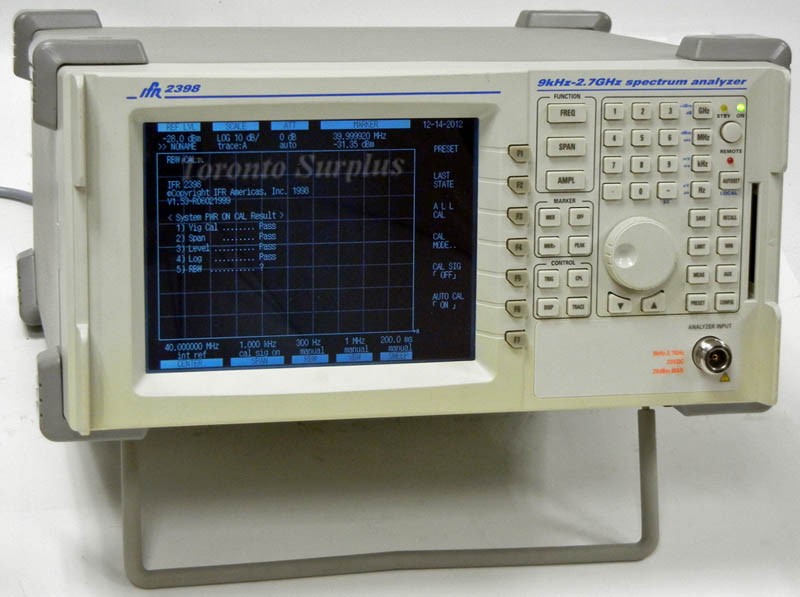

The spectrum analyzer is in great condition, as in the photos. You will also receive a soft shell transport case and manual. The manual is usable, but water damaged.
