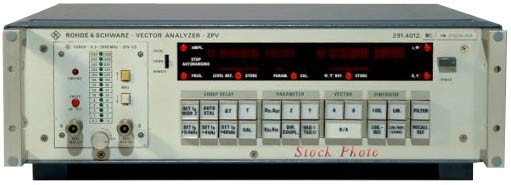

    Rohde & Schwarz ZPV / ZPV-E3 Vector Analyzer with E3 Tuner - 291-4012-92

    Double click on above image to view full picture

    More Views

    • Rohde & Schwarz ZPV / ZPV-E3 Vector Analyzer with E3 Tuner - 291-4012-92

    Rohde & Schwarz ZPV / ZPV-E3 Vector Analyzer with E3 Tuner - 291-4012-92


    Part Number: sku6831
    US$2,650.00
    Add Items to Cart
    Quantity in Stock: 1

    Ask a Question

    Product Description

    The ZPV is designed for critical applications in control engineering and for crystal, antenna, amplifier, and filter measurements.

    ZPV with Tuner ZPV-E3

    ZPV-E3 allows vector measurements, two-port and group-delay measurements in 50 ohm coaxial systems over a wide frequency and amplitude range.

    FEATURES & SPECIFICATIONS:

    Frequency Range: 0.3 to 2 GHz, usable to 2.5GHz.
    Dual Inputs 50 ohms:
                       Sensitivity:
                                 Channel A: 1200 uV (typ 400 µV), <1 MHz / 1000 µV (typ 300 uV), >1 MHz
                                 Channel B: 5 µV (typ 3 µV)
    Voltage Accuracy: (100mV) ± 0.2 dB to -2.3 dB depending on frequency
    Voltage Ratio: Range: -90 to +70 dB / Accuracy: 1.5%, >1020 MHz
    Phase: Range: -180° to +180° / Accuracy (dependant on frequency & amplitude): 0.5°
