Product Description

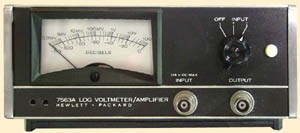

The 7563A is a single-channel, DC logarithmic amplifier with a very high (110 dB) dynamic range designed to produce a logarithmic-related DC output for a very wide range of DC input voltages. , high input impedance (100 kohm), and low output impedance (5-ohm). Voltage ranges from 316 µV to 100 V.
- SPECIFICATIONS:
- Input Impedance: 100 kΩ shunted by less than 100pF single ended
- Output Impedance: Less than 5Ω front panel 300Ω rear
- Input Voltage ±: 100µV to 100 V
- Output Voltage: 0-1.1 VDC corresponding to 10 mV/dB. Rear Terminals; adjustable 1-10 mV/dB
"
