Product Description

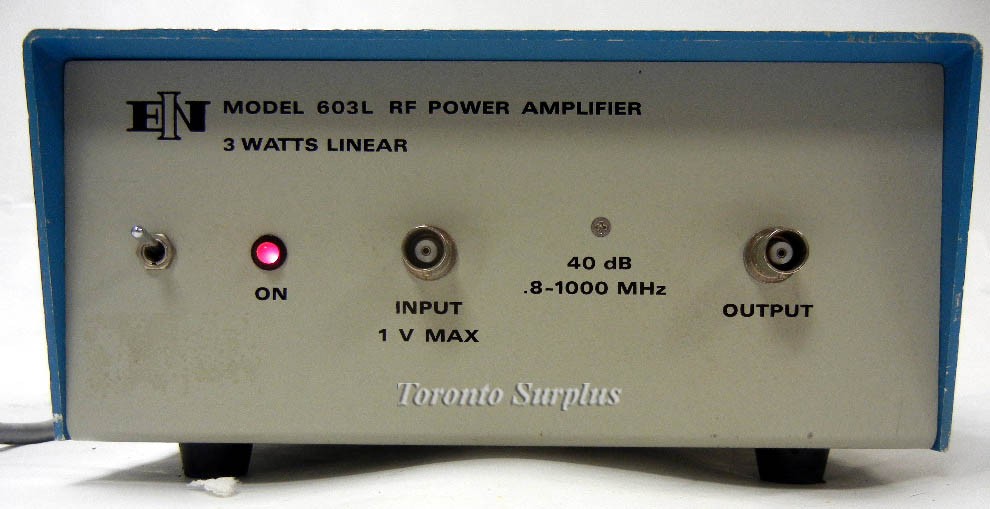

The ENI 603L Broadband Power Amplifier is an ultra wideband, class A, solid state amplifier that is capable of delivering over 3 watts of power with a flat frequency response from 800kHz to 1GHz. It will accept CW, AM, FM, SSB, pulse, wideband sweep and other complex modulations. Gain is 40 dB nominal. Gain variation is ±1.5 dB maximum. Input/Output impedance is 50-ohms.
Features:
Frequency range 0.8 to 1000 MHz
3 W output power
40 dB gain (nominal)
Works into any load impedance
50 Ohm impedance
BNC(f) connectors, input/output
115/230 Vac; 50/60 Hz operation
