Product Description

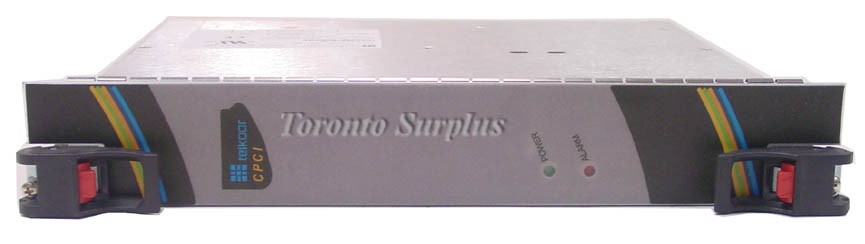

NOTE: Our Power Supplies are the one shown in the photo, and do not show a suffix on the label.
Input:
- DC Input Voltage 36 - 72 VDC
- Input Inrush Current 20AMax.
- Input Reflected Ripple FCC-68 part 15 & EN55022 Class B with the use of an external line filter
- Active Power Factor Correction
- Efficiency @ 48/24VDC 83% @ 48VDC
- Input Line Protection Non-User Serviceable Fuse
Output:
- V1/Current +5VDC /50A
- V2/Current +3.3VDC / 80A
- V3/Current +12VDC / 7.5A
- V4/Current -12VDC / 1.5A
- Total Output Power 400W with 250LFM ( 500W With 400LFM - Safety Pending)
- Line Regulation +/- 0.5%
- Hot-Swap: Yes
- Current Share Single Wire - on V1 & V2
- Remote Sense (Open sense lines protected)
- On +5VDC & +3.3VDC
- Long Term Stability 0.1% over 10 Hours after 10min.
