Product Description
A REAL BEAUTY !!

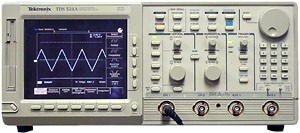

The TDS 524A is the world standard for digitizing oscilloscopes.
Applications for this unit include Digital Design and Debug, Analog Design and Debug, Manufacture Testing & Research
FEATURES:
Color Display, 500 MHz Bandwidth, Sample Rates to 500 MS/s, 2 channel input
Pulse Width, 2 ns Glitch, Runt, Pattern and State Triggering
1 mV to 10 V/div Sensitivity, Infinite and Variable Persistence Displays
Record Lengths to 50,000 Points
8-Bit Vertical Resolution and up to 12-Bit resolution with Hi-Res Acquisition Mode
1% Vertical Accuracy, FFT, Integration and Differentiation, 25 Automatic Measurements, VGA-Output to External Monitor, Waveform Pass/Fail Testing
This unit also comes with the following Options:
Opt. 05 - HDTV Video Trigger
Opt 13 - RS-232/Centronics Hardcopy Port
Opt 1F - 3.5 inch 1.44 MB Floppy Disk Drive
Opt. 1M - 50K Point Record Length
Advanced Waveform DSP Math
