Product Description
The P6501 Microprobe is a small, 1 Mohm input active probe optimized
for probe card mounting and use with probing stations.
FEATURES
Bandwidth: DC to 750 MHz
Rise Time: 450 ps
Attenuation: 10X
Input Resistance: 1 Mohm
Capacitive Loading: <1.9 pF
Dynamic Range: +10 V.

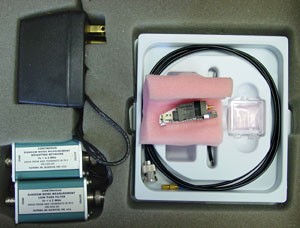

THIS SET COMES COMPLETE WITH
1 x P6501 1 Mohm Active Microprobe, 2 x Tungsten Probe Tips,
1x Ground Lead, 1 x 110VAC Power Supply, 1 x 1.5 m 50 ohm Cable Miniature to BNC,
1x Continuous Random Noise Measurement Low Pass Filter Fc = 4.2 MHz &
1x Continuous Random Noise Measurement Weighting Network Fc = 4.2 MHz.
for probe card mounting and use with probing stations.
FEATURES
Bandwidth: DC to 750 MHz
Rise Time: 450 ps
Attenuation: 10X
Input Resistance: 1 Mohm
Capacitive Loading: <1.9 pF
Dynamic Range: +10 V.
THIS SET COMES COMPLETE WITH
1 x P6501 1 Mohm Active Microprobe, 2 x Tungsten Probe Tips,
1x Ground Lead, 1 x 110VAC Power Supply, 1 x 1.5 m 50 ohm Cable Miniature to BNC,
1x Continuous Random Noise Measurement Low Pass Filter Fc = 4.2 MHz &
1x Continuous Random Noise Measurement Weighting Network Fc = 4.2 MHz.
