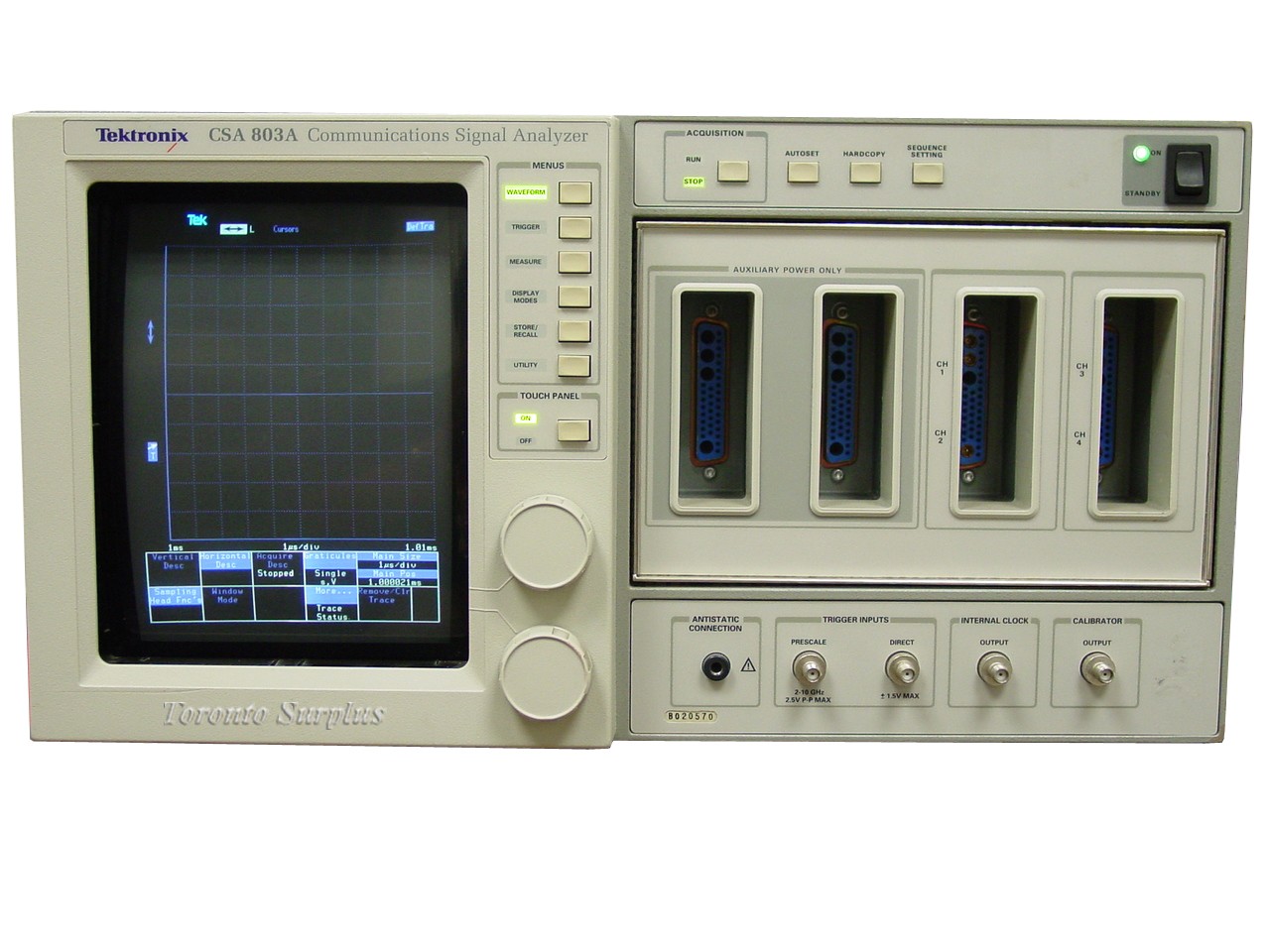

The CSA 803A communications signal analyzer offers the highest bandwidth and time resolution of the 11000 Series. In addition to the easy-to-use, touch-screen user interface and powerful automatic measurement system common to all 11000 Series instruments, the CSA 803A adds single-ended and differential TDR and TDT, timing resolution to 0.01 ps, and up to 50 GHz bandwidth (depending on the sampling head used). This unmatched performance and feature set makes the unit ideal for semiconductor device testing. TDR characterization of circuit boards, IC packages, cables and high-speed digital communication measurements.

The CSA 803A accepts up to two dual-channel SD Series sampling heads and has built-in trigger capability of up to 10 GHz through the prescaler.

FEATURES

CSA 803A

• DC to 50 GHz Bandwidth
• Automatic Statistical Analysis
• 38 Industry Standard Masks (ITU-T and ANSI)
• High Resolution and Repeatability
• 7 ps Rise Time (SD32)
• Modularity Through Sampling Heads
• Triggering to 10 GHz (Prescaler)
• TDR for Precision Impedance Analysis
• FFT for Spectral Analysis
• Extinction Ratio Measured Automatically
• Built-in Automatic Eye Pattern and Pulse Template Testing
