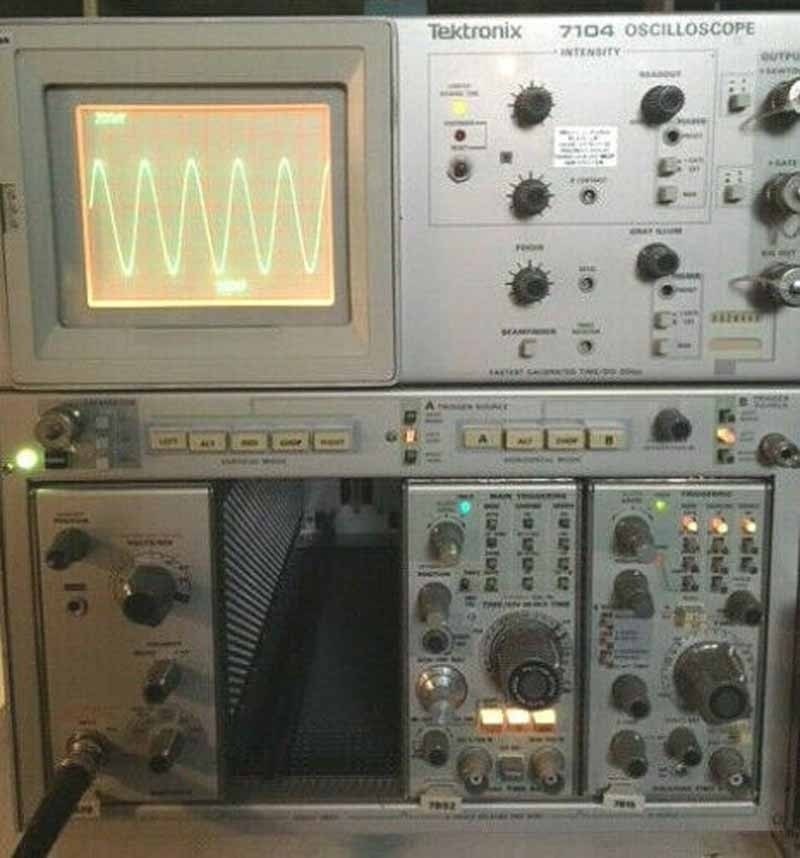

The 7104 is a 1 GHz realtime mainframe oscilloscope with outstanding writing speed which means excellent single-shot capability, with trace brightness about one thousand times that of conventional oscilloscopes.  Any single-shot signal within the 1GHz bandwidth can be seen directly on the CRT in average room light.

 FEATURES & SPECIFICATIONS

• Displays fast transients and lo repitition rate signals under normal lighting
• Bandwidth: 1 GHz Bandwidth, (350 ps Rise Time) at 10 mV/Div
• 200 ps/Div Fastest Calibrated Sweep Rate
• 350 MHz Horizontal Brandwith
• Frequency Response: 1 GHz
• Channels: 2 Vertical & 2 Horizontal
• Display Modes: A, Alt, Chop, B
• Power Input: 90-132, 180-250VAC; 48-440 Hz

  Option 02: X-Y Horizontal Compensation
  Option 03:  EMC Capability

  NOTE: Plug-ins included are 7A19, 7B92, 7B15
