Product Description

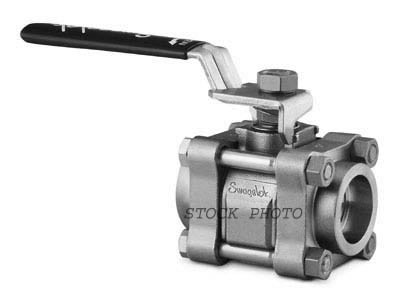

Swagelok SS-68TSW32P-ID 4-Bolt Carbon Steel 3-Piece 60 Series Ball Valve BRAND NEW / NOS
Reinforced PTFE Seats, 1 1/2 in. Pipe Socket Weld
Flow Pattern: Straight (2-way)
Service Class: General
Size: 1 1/2 in. Nominal - 67 Series
Valve Material: Stainless Steel
End Connection 1 Size: 1 ½ inches
End Connection 1 Type: Pipe socket weld
End Connection 2 Size: 1 1/2 inches
End Connection 2 Type: Pipe socket weld
Handle Color: Black
Handle Style: Lever
Ball/Stem Material: Stainless Steel
Fastener Material: Stainless Steel
Flange Seal Material: Fluorocarbon FKM
Packing: Reinforced PTFE
Seat Material: Reinforced PTFE
Seat Spring Material: Stainless Steel
Stem Bearing Material: Alloy X750
Max Temperature Pressure Rating: 450°F @ 100 PSIG /232°C @ 6.8 BAR
Room Temperature Pressure Rating: 1500 PSIG @ 100°F /103 @ BAR 37°C
