Product Description

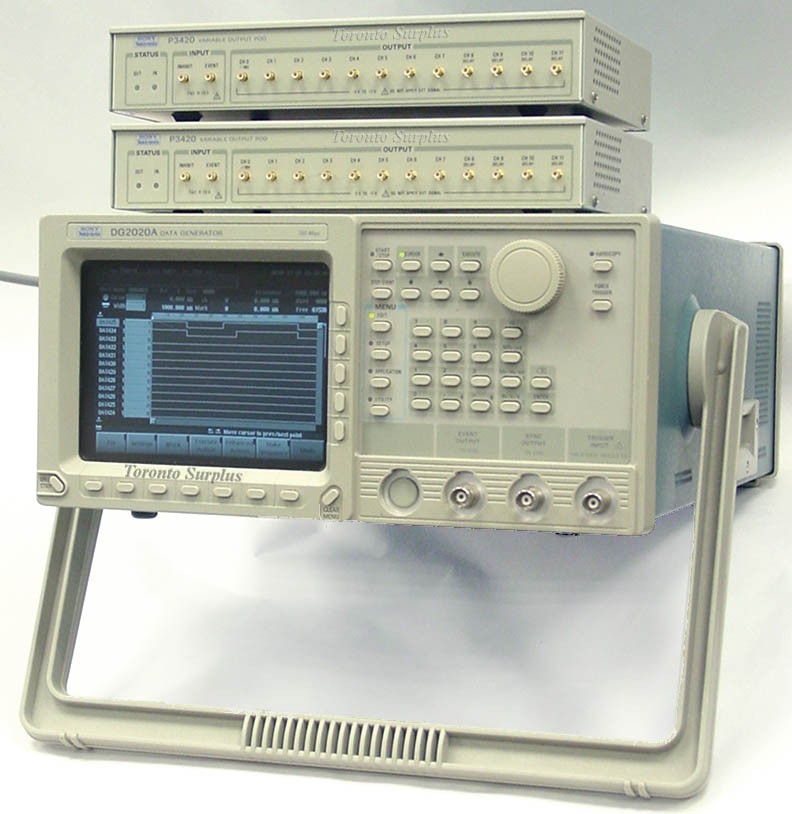

The DG2020A pattern generator provides digital designers with the high-performance tools needed to evaluate digital semiconductors and logic circuits. Whatever you call your design process - characterization, debug, validation, or verification - as a digital designer you must have a state-of-the-art digital pattern generation as you push the edge of the technology envelope and race to market
DG2020A Features & Benefits:
- Data Rate to 200 Mb/s
- Data Pattern Depth 64 K/channel Speeds Characterization
- Multiple Output Channels Increases Flexibility
- DG2020A: 12, 24, or 36 - Precise Control of Output Parameters Include:
- Variable Output Delay
- Variable Output Level
- Tri-state Output Control - Transition Times 2 ns at 5 Vp-p
- Flexible Sequence Control with Jump, Event, and Nested Loops
- Large Display for Easy-to-Use Data Editing
- Import Pattern Data with DG-Link Software Utility
- Integrate into ATE Systems through GPIB/RS-232-C Interface
P3420 SPECIFICATIONS:
- Channels: 12
- Connector: SMB
- Resolution: 0.1 V.
- Maximum Swing 9.0 Vp-p
- Minimum Swing 0.5 Vp-p
- Delay Channel CH 8 CH 9 CH 10 CH 11
Option 02: Opt. 02 - Adds two 12 bit digital ports for a total of 36 output channels
Includes: 2 x P3420 Pods.
Complete specifications available upon request.
