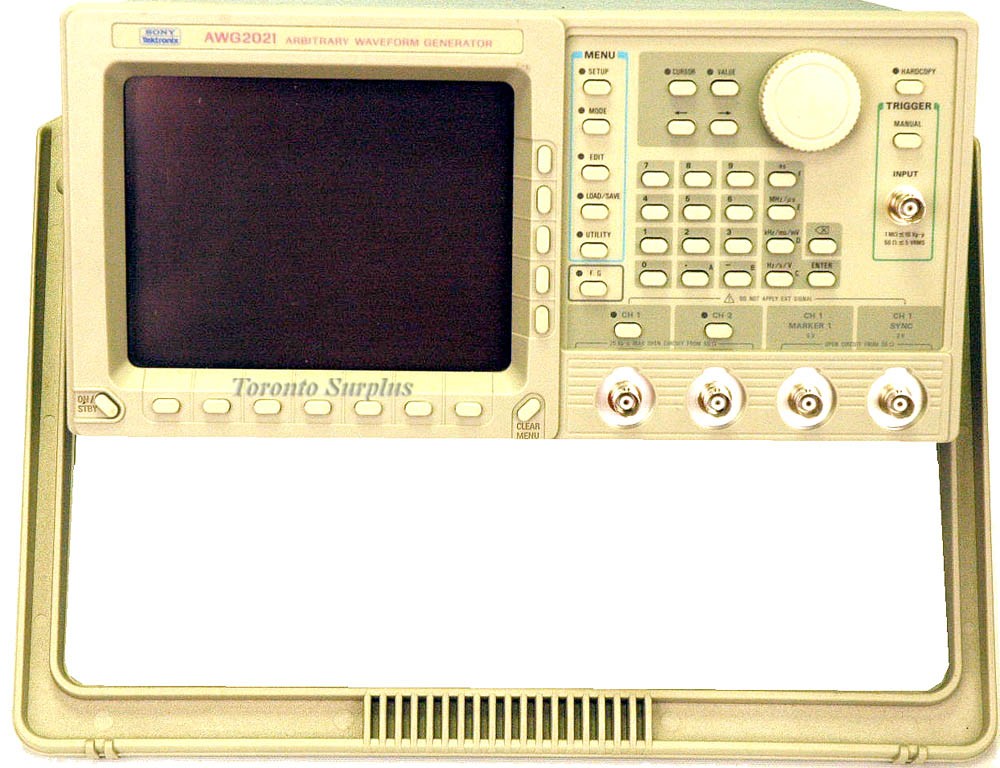

Sony / Tektronix AWG2021 / AWG 2021 Arbitrary Waveform Generator with Opt 2

    * 250 MS/s Clock Rate Provides up to 125 MHz Waveforms
    * 256 k (262,144 Points) Record Length
    * 12-Bit (1/4096) Vertical Resolution
    * Direct DSO Waveform Transfers
    * Region Shift Function Provides 4 ps Edge Placement
    * Built-in 1.4 MB, 3.5 in. Floppy Disk
    * FFT Frequency Domain Editor (Opt. 09)
    * Real-time Waveform Sequencer
    * Formula Entry of Waveforms
    * Fully Programmable from Front Panel, RS-232 and GPIB

The AWG2021 is Tek's median performance product offering fast (250 MS/s) and deep memory (256 k). As with the entire 2000 Series family, the graphical user interface allows on-screen viewing of waveform editing and simplifies "what if" test scenarios by easily allowing the creation of composite signals.

The standard AWG2021 configuration provides one 5 V output or a second independent 5 V output (Opt. 02) each with 12-Bit vertical resolution. Frequency of channel 2 is also independently programmable.

The AWG2021 easily simulates signals where moderate point definition and long records are required for simulating very complex waveform conditions. Direct waveform transfer capability makes the AWG2021 the perfect accessory for Tektronix DSOs.

Opt. 02 – Independent, 256 K second channel.

This unit is in excellent functional and cosmetic condition, and includes the Users & Programmers Manuals
