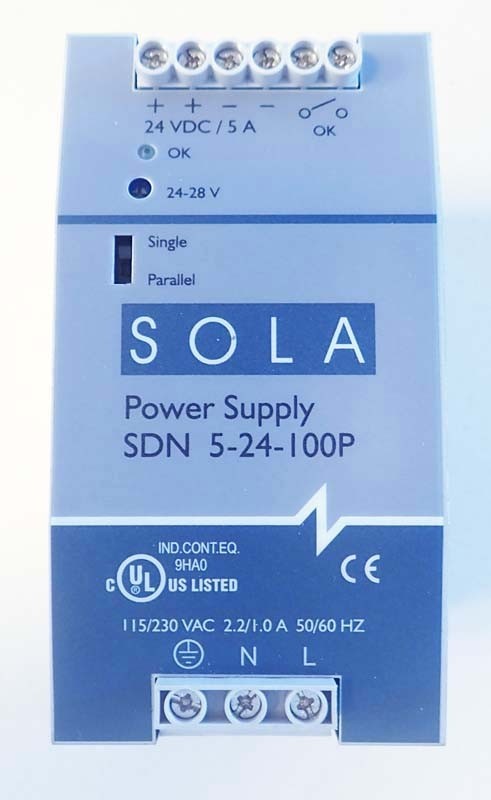

Product Description
Power Supply Output Type: Fixed / Adjustable
Input Voltage VAC: 85V to 132V / 176V to 264V
No. of Outputs: 1
Output Voltage Nom.: 24V
Output Current Max: 5A
Output Power Max: 120W
Power Factor Correction — Per EN61000-3-2
Class 1, Zone 2 Hazardous Locations
Auto Select 115/230 VAC, 50/60 Hz Input
Highly Efficient — >90% Switching Technology
DC OK Signal
Adjustable Output Voltage
–10 to 60°C Operation without Derating
Indefinite Short Circuit, Overvoltage and Overtemperature Protection
Powers High Inrush Loads without Shutdown or Foldback
Parallel Capability Standard on All Units
Rugged Metal Case and DIN Connector
Improved Metal Mounting Clip Withstands Up to 40 G of Shock
Narrow Width on Rail for Space Critical Applications
