Product Description
PRODUCT DETAILS:

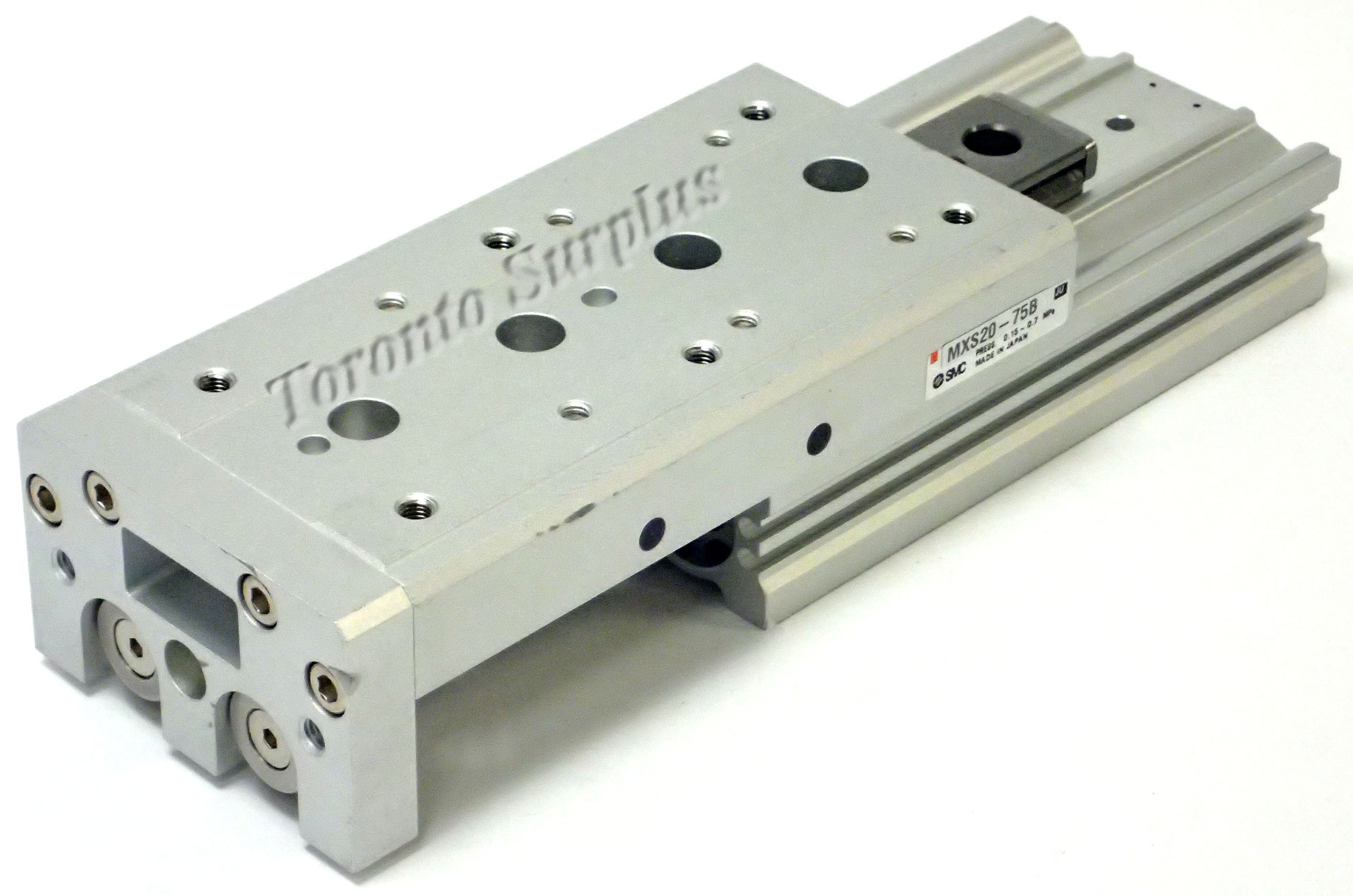

Slide Table Type: Air Slide Table (MXS Series)
Bore Diameter: 20 mm
Stroke Length: 75mm
Magnet Included: Yes
Number of Auto Switches: 0
Piston Action: Double-Acting
Bearings Included: Cross Roller Bearing
Port Size: 1/8"
Proof Pressure: +1.05 MPa
Operating Pressure Range: +0.15 to +0.7 MPa
Maximum Applied Force: 440 N
Operating Temperature Range: -10 to +60 °C
Overall Length: 161mm
Overall Width: 76mm
Overall Height: 50mm
Threaded Standard: BSPT
