Siecor OT-100 Optical Power Meter

The Siecor OT-100 is a compact, lightweight optical tester that fits into the palm of your hand. This user-friendly unit can be used as an LED light source, as well as a power meter.
The OT-100 includes a transmitter, receiver, optical ports, receptacle head, power adapter, back-lit digital display and manual.
The OT-100 has multiple applications: attenuation testing using the insertion loss method, continuity checking, and troubleshooting.

SPECIFICATIONS:
Transmitter

• Wavelength: 865 nm +25 nm/-20 nm
• Spectral Width (FWHM): <50 nm
• Output Power: >:-25 dBm

  Receiver
• Measurement Range: +1- t o-60 dBm (10 mW to 1 nW)
• Resolution: 0.01 dB

OT-100 = Unit
55 = ST Connectors

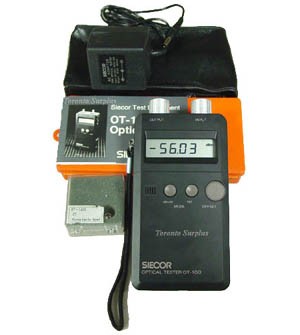

You will receive the following:

1 x OT-100 Optical Tester
2 x ST Connectors
1 x Soft Pouch for OT-100
1 x AC Adapter for OT-100
8 x Alcohol Wipes
1 x Small Storage Box
1 x Operation Manual
1 x 2HH-TCASE Hard Shell Pressurized Transit Case

Click photo for additional specifications
