The Model SC is a self-calibrating microprocessor-based Transducer Signal Conditioner/Indicator.
When used with transducers that have the Sensotec Signature Calibration Module installed, the
Model SC will completely self-calibrate zero, span, linearity, decimal point, and engineering units automatically

The Model SC can self-calibrate using the mv/v sensitivity or shunt calibration information from any
strain gage type transducer, and can be manually calibrated using known stimuli in 2, 3 or 5 point
modes. The transducer output-versus-load characteristics, including linearity corrections are stored
within the Model SC, and produce an accurate display, plus analog and digital outputs.

Range 0-5V

Excitation 5 or 10 VDC

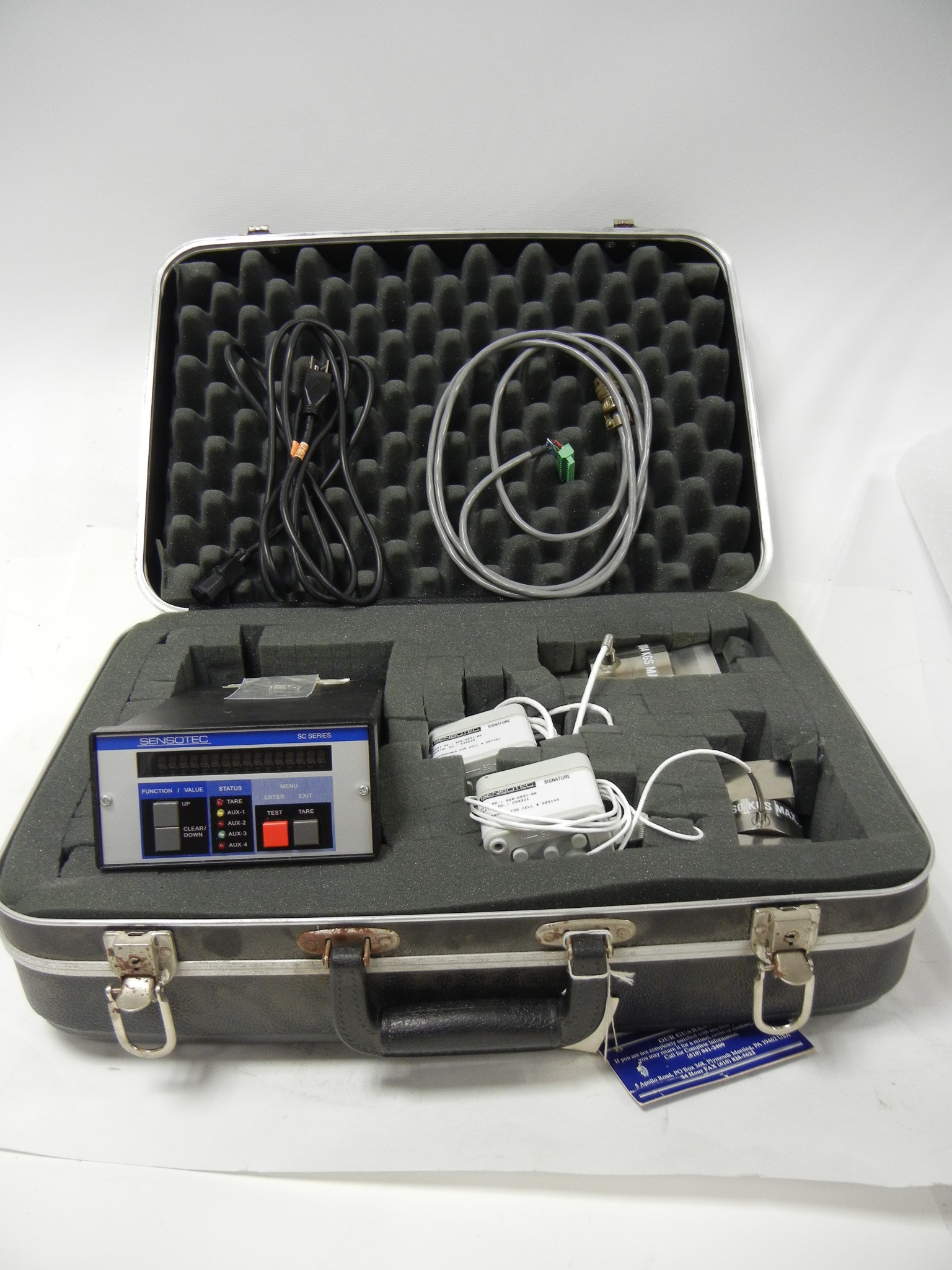

Includes the following:

SC Series Conditioner P/N 060-6833-01
1360 kg max Load Cell with Signature Calibration Module
6804 kg max Load Cell with Signature Calibration Module
1 x Load Cell Interconnect Cable
1 x Power Cord
1 x Hard Shell Case with Keys
