National Optical DC3-163-PH Microscope (In Stock)

Double click on above image to view full picture

More Views

  • National Optical DC3-163-PH Microscope (In Stock)

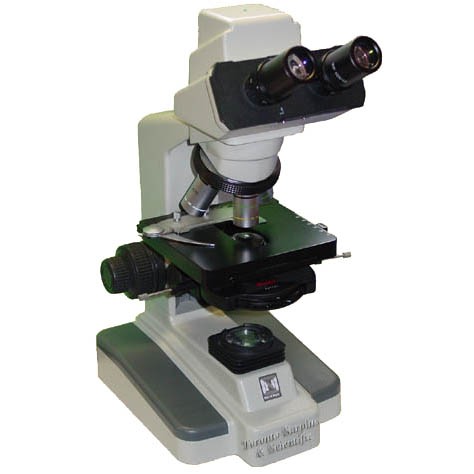

National Optical DC3-163-PH Microscope, Phase Contrast - MINT, Like New (In Stock)


Part Number: sku6132
US$1,895.00
Add Items to Cart
Quantity in Stock: 1

Ask a Question

Product Description


Superior in design and in performance, the DC3-163 series incorporates a wide range of features designed for university and laboratory use. Superb optical clarity and reliable mechanical engineering assure years of top performance. Plan achromatic lenses deliver superior clarity and flatness of field. This microscope is fully functional, independent of the camera application. Supplied with powerful Motic Images software. This microscope is new and never been used before

    OPTICAL SYSTEM:
  • Widefield 10x /18mm eyepiece pointer standard in one eyepiece. Accepts optional #965-160 eyepiece reticle.
  • 30° inclined binocular eyepieces with dual diopters and interpupillary adjustment 54mm to 76mm.
  • 3-position sliding rod directs light 100% to binocular eyepieces or 100% to camera or 70% to camera and 30% to binocular eyepieces.
  • DIN standard Plan Phase 10x (0.25 N.A.) 20x (0.40 N.A.) 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. The plan lenses are parfocalled parcentered and color-coded. Plan Phase condenser with one brightfield position with centering telescope.
  • Quad objective turret is ball bearing mounted for smooth precise positioning of objectives features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides.
    ILLUMINATION
  • 12v 20-watt halogen with variable rheostat control.
  • 12VDC power converter operates on 100v-240v 50H/60H current without need of additional transformer.
  • Illuminated on/off switch 3-wire grounded cord and plug.
    FOCUSING
  • Coaxial coarse and fine focusing controls coarse has tension adjustment fine is graduated.
    STAGE
  • 1.25 N.A. Abbe condenser has rack & pinion focusing iris diaphragm swing-out filter holder with clear blue green and yellow filters supplied.
    ACCESSORIES
  • Motic software for mac and pc. One cd plus quick start guide for each operating system
  • Adventures with a microscope cd
  • Microscope cover
  • Cat#7105 72 microscope slides
  • Cat#7101 approx. 20 slides and small box of slip covers
  • Thirteen test samples
  • Computer USB cable
  • Power cord
    CASE COMPONENTS
  • Cases for objectives
  • Eyedropper
  • Keys
  • Five filters
  • Two eye cups for eyepieces

"
