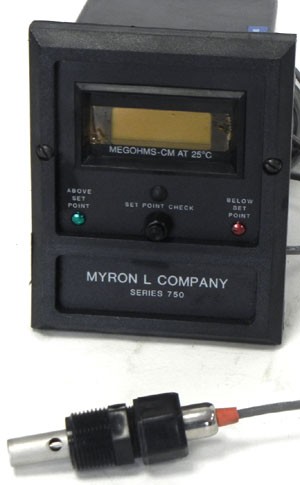

Product Description
7 Resistivity ranges from 0-200 Kilohms to 0-20 Megohms-cm
Choice of 3½ digit display or analog meter
Automatic temperature compensation to 25°C
Isolated 0-10 VDC Recorder Output standard
IP65/NEMA 4X water resistant and corrosion-proof enclosure
Built-in electronic calibration
Single set point/alarm standard
Adjustable setpoint hysteresis
Solid State 24 VDC Output
10 amp relay operates on choice of increasing or decreasing reading
LEDs show "above/below" alarm/control status
Push-to-test set point check
Internal set point discourages unauthorized adjustment
Selectable 115/230 VAC
Sensor Specifications
Constant: 0.05
Temperature Compensation: Two integral temperature sensors provide automatic TC to 25ºC.
Pressure/Temp Limits: 100 psi/690 kPa @ 212ºF/100ºC.
Bushing: Modular Polypropylene threaded 3/4” NPT. 1/2” PVDF or 316 stainless steel fittings (optional).
Cable: Shielded 10 ft./3 meters standard; 25 and 100 ft./ 8 and 30 meter lengths available.
Dimensions: Metal portion 30 L x 13 Dia. mm/ 1.2 L x .5 Dia. in.; overall length 91 mm/3.6 in.
