Product Description

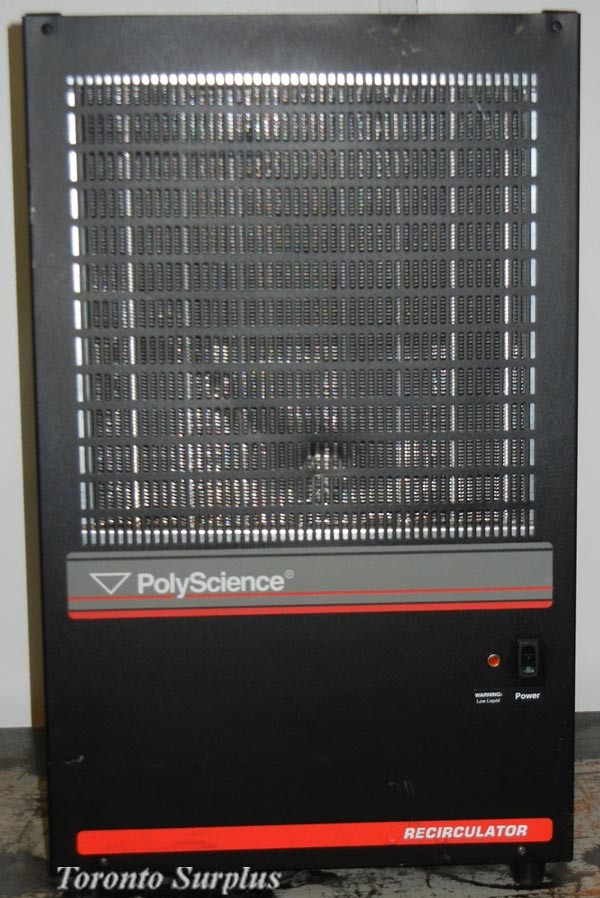

Model 3370 is a non-refrigerated water-to-air recirculator that economically removes heat in applications where the cooling fluid temperature is higher than ambient and control is not required.
The 3370 offers significant cost savings over recirculators with mechanical refrigeration, plus the compact design saves space in your lab or factory. The main components are simple and effective. A positive displacement pump circulates fluid to your equipment, back into a reservoir, and through a fan cooled radiator which removes the heat. A built-in low liquid level indicator safeguards the reservoir and pumping system.
Specifications: 3370
Cooling Capacity @ 25ºC with Delta T of 60ºC: 3700 Watts (12,000 BTU)
Maximum Liquid Temperature: 77ºC (170°F)
Fluid Flow Rate: 2gpm (7.5 lpm)
Reservoir Capacity: 1.3 gal (4.8 L)
Fluid Connections: 1/2 in. outlet & inlet
Input Power: 120V, 60Hz
