Electrical

• Output Current: 30A
• Resistance; 0 to 0.15 Ohms, accurate within ± 5% when monitor is at full-scale
• Test Time: 1 to 90 seconds, user-adjustable (5-7 seconds is factory default)
• Line Input Requirements; 115/230 VAC, ± 10%, 44-66 Hz, up to 360 Watts

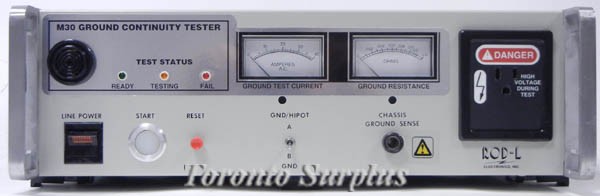

ROD-L M30 AC Ground Continuity Test Instrument

• Performs ground continuity tests in full compliance with BSI, VDE and IEC
• Test time is adjustable from 1 second to 90 seconds
• Measures AC resistance from Chassis of Device Under Test (DUT) to power-cord ground lead – 0 to 0.15 ohm
• Audible and visual alarms identify faulty ground connections
• Hipot interface enables interconnecting to any ROD-L ROD-L Hipot Test Instrument to form an automatic test system

ROD-L Hipot Test Systems Interfacing

• The Ground Continuity Test Instrument can be interconnected with any ROD-L Hipot Test Instrument to operate as a fully automatic system
• One connection for DUT, and one start button to press

SUPERIOR SAFETY FEATURES

•     Front panel receptacle is rated to 8000 VAC
•     Front panel receptacle prevents director operator exposure to high voltage during test

Production/Quality Assurance Testing


•     After test parameters are preset, a single button actuates the Fully Automatic test cycle
•     Measures ground continuity from chassis ground to the power cord ground pin of the DUT

    Detects and indicates the following:

• Test in Progress
• Test Failed
• Resistance measurement, 0-0.15 ohm
• Current measurement in amperes

• Ground resistance trip point easily preset via rear panel potentiometer
• If the ground resistance exceeds the preset value, a fail is indicated both audibly and visually
