Wiltron 560 / Anritsu 560 System Components for Scalar Network Analyzer


Part Number: sku8298
Contact for price
Add Items to Cart
Quantity in Stock: 1

Ask a Question

Product Description

Wiltron 560 / Anritsu 560 System Components for Scalar Network Analyzer

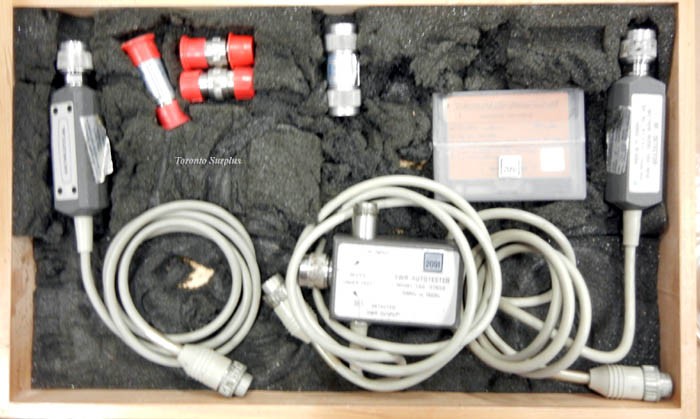

This handy wooden case comes with several system components used for the scalar network analyzer.

Components included:

 -560-98 SWR Autotester (10 MHz to 18.5 GHz)
- RF Detector 560-7N50 (10 MHz to 18.5 GHz)
- Adapter 50 ohm 34NN50A (10 MHz to 18.5 GHz)
- Type N to N Connectors (qty: 2)
- Wiltron 22NF50 Open Short Site Master SiteMaster Antenna Cable
- Pamona 3781-12 Probes
-1 Automated Scalar Network Analyzer Cartridge


 560-98 SWR Autotester (10 MHz to 18.5 GHz)

  •     Up to 35 dB directivity
  •     10 MHz to 40 GHz range
  •     Input port impedance: 50 Ω
  •     Insertion Loss (from input to test port): 6.5 dB nominal
  •     Detector Output Polarity: Negative
  •     Maximum Power Input: 0.5 watts (+27 dBm)
  •     Output Time Constant: 2 ms
  •     Cable Length: 122 cm (4 feet)
  •     Test port connectors to fit most measurement applications; avoids use of adapters
  •     560-98K50: Type K(m) connection, 560-98KF50: Type K (f) connection


RF Detector 560-7N50 (10 MHz to 18.5 GHz)

  • Frequency range: 10 MHz to 18 GHz
  • Measurement range of –55 dBm to +16 dBm
  • Return loss: 16 dB, <0.04 GHz; 22 dB, <8 GHz; 17 dB, <18 GHz
  • Maximum input power: 100 mW (+20 dBm)
  • 50 Ohm impedance
  • Connector: N(m)
  • Cable length: 122 cm (4 ft)



Adapter 50 ohm 34NN50A (10 MHz to 18.5 GHz)

  • Precision N(M) to N(M) adapter
  • 50 ohm


Wiltron 22NF50 Open Short Site Master SiteMaster Antenna Cable

  • OPEN / SHORT, 50 Ohm / 2 x N-Buchse

Pamona 3781-12 Probes

  • Minigrabber Test Clip Patch Cord, 12 Inch, Black
  • Wire: 20 AWG. 41 × t.c. PVC insulated, 2.21 mm (0.087) O.D. Rating: 300 VAC, 12 amps.

Automated Scalar Network Analyzer Cartridge

  • Program Cartridge
