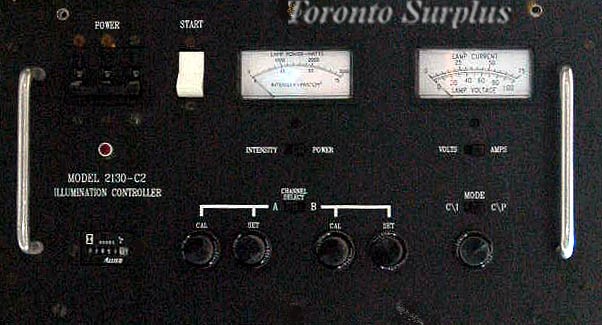

Radiation Power Systems AB-M 2130-C2 / 2130 2K DUV C2 Illumination Controller/ Short-arc Lamp Power Supply, 2 kW

C2 Models

Constant intensity models allow the user to connect two optical sensors to regulate and maintain constant light output over the life of the lamp. This is a key feature for applications that require precise exposure control. C2 models are dual-mode systems that allow the user to select either C2 or CP mode. The user interface for C2 models include:

CP – C2 mode select switch
Potentiometer to adjust output power within preset min/max levels (CP mode)
Potentiometers to calibrate optical sensors and set target intensity level (C2 mode)
Channel select switch for optical sensors (C2 mode)
Analog meters with dual scales for lamp power/intensity and lamp voltage/current (switch-selectable)
For  2kW Lamps
Ignition: 20 kV Pulse
Line Voltage: 208 VAC, 60 Hz, 3 Phase
Start Current: 50 -120A
