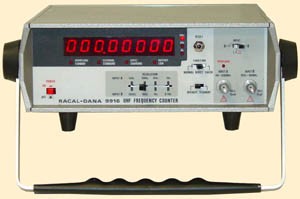

The 9916 is an 8 digit, 520 MHz frequency counter designed for servicing and calibrating mobile communications equipment and AM/FM broadcast equipment. Features include auto gain control AGC on both input channels, frequency burst mode for measurement of short duration signals and data output. Full RFI flitering and shielding allow the 9916 to be used in high RFI environments.

SPECIFICATIONS

• Frequency Range ch A - 40 MHz to 520 MHz / ch B - 10 Hz to 60 MHz
• Coupling: AC
• Input impedance: ch A - 50 ohms ch B - 1 Mohm in parallel with 25 pF
• Sensitivity Sinewave: 10 mV rms
• Max Operating Input: ch A - 5 V rms ch B - 10 V AC p-p
• Max Safe Input: ch A - 35 V rms 25 W. ch B - 250 V rms up to 10 kHz 50 V rms up to 100 kHz 10 V rms above 100 kHz 400 V DC


EACH ITEM SOLD SEPARATELY:
9916 Counter: $295.00
Blue Plastic/Canvas Case: $5.00
Black Leather Case: $20.00

"
