Product Description

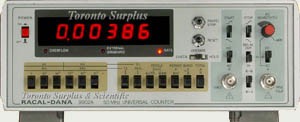

The 9902 is a 50MHz universal counter with frequency autotracking and a 6 digit display. Trigger delay is provided for contact bounce protection. As a general-purpose bench instrument, the 9902 is ideal. The 9902 has a high impedance input and LED display.
SPECIFICATIONS:
- AC Frequency Range: Channel A - 10 Hz to 50 MHz Channel B - 100 Hz to 20 MHz
- DC Frequency Range: Channel A - DC to 20 MHz Channel B - DC to 10 MHz
- Time Interval Average Range: 150 nSec to 100 mSec
- Voltage Range: 94 to 132 VAC 188 to 265 VAC in 8 selectable ranges
- 45-450 HZ
Additional specifications available upon request.
