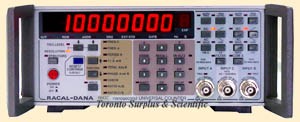

The 1992 offers a unique combination of superior performance and measurement capability in a compact, half-rack package. This dual microprocessor-based counter provides outstanding operational simplicity with exceptional versatility. The measurement functions, which include frequency, period, time interval, ratio, totalize, phase and peak amplitude benefit from full GPIB progamming, external arming, an internal timing delay generator and math capability.

FEATURES & SPECIFICATIONS:
• C Input
• Direct Frequency Measurement to 1.3 GHz
• 1 nSec Single Shot Time Interval
• 9 digit Resolution in 1 second
• Automatic Triggering

  OPTION 04T = Temperature Controlled Crystal Oscillator
  OPTION: 55 = GPIB Interface

Additional specifications available upon request "
