FEATURES

·         Continuous real-time force adjustment

·         RS-232 Serial Interface

·         PLC & Opto 22 Compatible 24V Parallel Interface

·         ±10V Analog Interface

·         Complete Emergency Stop Integration

·         Compact, easy-to-mount enclosure

·         Removable I/O connectors for rapid electrical hookup

            The Series 100 Embedded Active Force Controller combined with PushCorp Active Force Control Tools creates an integrated force control system unsurpassed by anything else available today. Advanced micro-computer technology puts you in control with numerous interface options.  All of this combines to make it incredibly easy to integrate super-accurate force control capabilities into your processing environment.
            The Series 100 Embedded model has multiple hardware interfaces including RS-232 serial, industry standard 24 VDC digital, ±10 VDC analog interfaces.  These interfaces allow the Series 100 Embedded controller to be remotely configured and operated by a host PLC, robot controller, or personal computer. (**Note host PLC, robot controller & personal controllers are NOT included in the sale**)

            The embedded model FCU100-3 is designed to operate with a robot controller, remote host computer or PLC.  The FCU100-3 is configured through a RS-232 serial port.  Once configured, the controller can be operated via analog or digital interfaces, or through the RS-232 serial port using simple ASCII commands.  These commands can originate from any serial port equipped PC or robot controller.
             In addition to the serial interface, the FCU100-3 also provides ±10 VDC analog and 24 VDC digital I/O.  These standard industrial interfaces allow the FCU100-3 to directly interface to most any PLC or robot controller.  A common approach is to use AFD Windows to assist with initial configuration and then use the analog and/or digital interfaces for the control interface during processing.

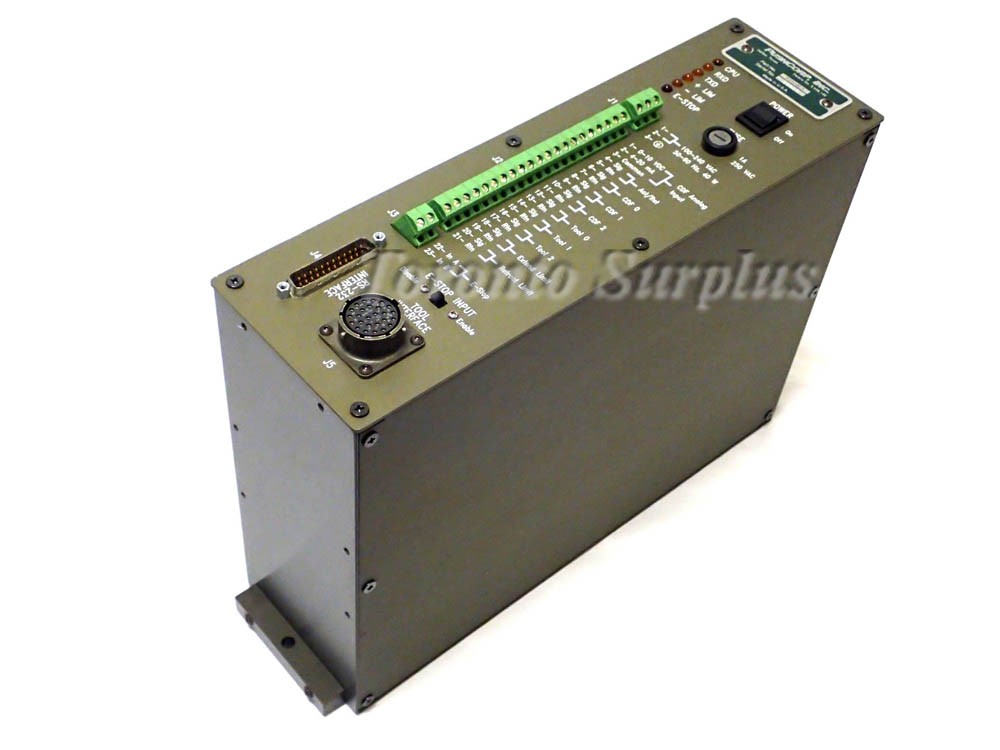

            The embedded FCU100-3 is packaged in a rugged, compact enclosure so that the control unit may be mounted almost anywhere.  Removable electrical connectors make servicing the FCU100-3 a snap.
             The PushCorp Model FCU100-3 is a cost-effective solution providing the ultimate in flexibility and ease-of-use.

SPECIFICATIONS
Electrical Supply:  90-240VAC, 50-60 Hz, 100 W
Interfaces:  RS-232 Serial Standard 24VDC digital ±10VDC Analog
Enclosure Size: 3.8 x 12.5 x 11.5 Deep
