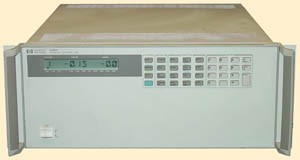

    HP 6050A / Agilent 6050A System DC Electronic Load see plug-ins page for 60504B

    Double click on above image to view full picture

    More Views

    • HP 6050A / Agilent 6050A System DC Electronic Load see plug-ins page for 60504B

    HP 6050A / Agilent 6050A System DC Electronic Load Mainframe, Mainframe Only


    Part Number: sku4903
    US$1,000.00
    Add Items to Cart
    Quantity in Stock: 3

    Ask a Question

    Product Description

    The Agilent 6050A electronic load mainframe accepts user-installable Agilent load modules for easy system configuration and future reconfiguration. The 6050A holds up to six 60501B, 60502B, and 60503B load modules (NOT included), or three 60504B and 60507B load modules (NOT included), allowing up to 1,800 watts of total maximum power (depending on plug-ins). One GPIB address is all you need for complete control and readback of all load modules within a single mainframe.

      Features of 6050A only
    • GPIB control of current voltage and resistance
    • GPIB readback of current voltage and power
    • Built-in pulse waveform generation with programmable amplitude frequency duty cycle and slew rate
    • Full protection from over-current over-voltage overpower over-temperature and reverse polarity
    • Electronic calibration
    • Trigger for external synchronization
    • Parallel units in constant current mode for higher power
    • VXI plug&play drivers



    Mainframe only
