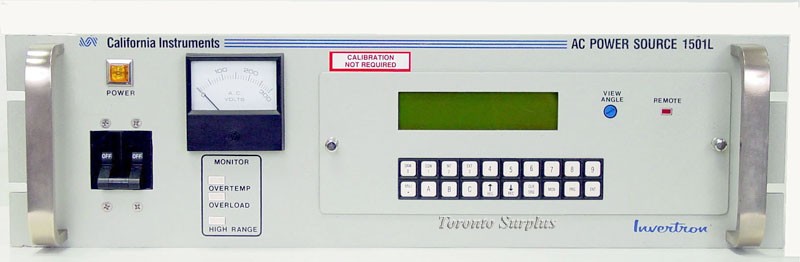

Product Description
Specifications:
- Line Input: 115 V or 230 V single phase
- Line Frequency: 47 Hz to 440 Hz
- Power Output: 1,667 VA at 35°C
- Output Phase: 1
- Output Frequency Power Supply: 17 Hz to 5 kHz (See V-F derating for 17 Hz to 45 Hz)
- PT Controller Frequency: 45-550 Hz
- Output Current: 12.34A at 135V
- Output Voltage 0- 135VAC/ 0-270VAC
- AC Noise Level: 200 mV typical
- Power Factor: 0 to 1.0
- Peak Repetitive Current: 5.0 times max current at 50°C
OPTIONS:
-1PT: Single phase fast transient controller uses a fast real-time servo, instantly creating exact waveform definitions ideal for applications such as switching DC power supplies where real-time feedback and fast output settling times are critical. The -PT controller is recommended for applications that require fast transients to be programmed over time or cycles.
-160: RTCA/DO-160 test. These test routines are embedded in the -PT controller along with the standard APE language. (not available on -P controller)
