Product Description

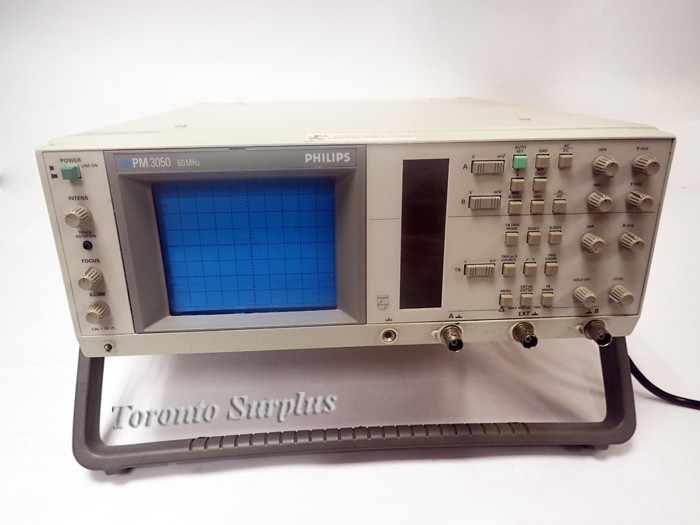

PM 3050 60MHz 2 Channels Single Time Base
Witgh all the standards facilities of the Smart Scope series this basic instrument provides comprehensive trigger facilities like TV line, TV frame. Peak - Peak Auot and Dc Coupling in addition to trigger hold off. Time base speeds to 5 nsec per division are standard as well as x 1 and x 10probe identification. X deflection via either channel is possible.
- Frequency Response: DC...>60MHz -3dB ( 0....35°C)
- Rise Time: <6ns ( 20 mV/div....10V)
- Error Limit: 3%
- Input Impedance: 1mohm ±2%/20pF ±2pF
- Max Rated input Voltage: 400V ( DC+AC Peak)
