Product Description
FEATURES
KEY PARAMETERS VCES VCE(sat)* IC25 IC75 IC(PK) (typ) 600V 2.2V (max) 700A (max) 500A (max) 1400A
n - Channel High Switching Speed Low Forward Voltage Drop Isolated Base
APPLICATIONS

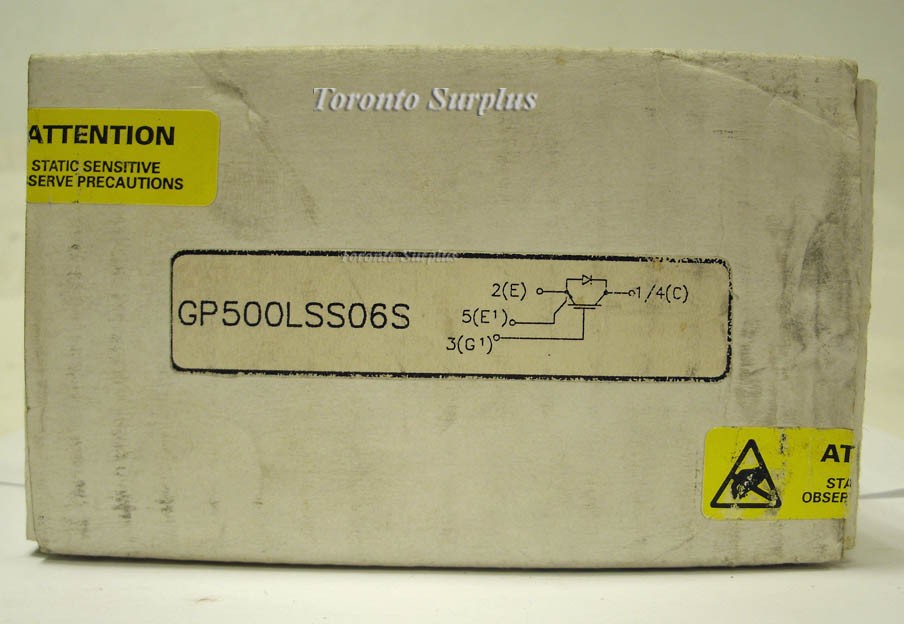

The Powerline range of modules includes half bridge, chopper, dual and single switch configurations covering voltages from to 3300V and currents to 2400A. The is a single switch 600V n channel enhancement mode insulated gate bipolar transistor (IGBT) module. The module is suitable for a variety of medium voltage applications in motor drives and power conversion. The IGBT has a wide reverse bias safe operating area (RBSOA) for ultimate reliability in demanding applications. These modules incorporate electrically isolated base plates and low inductance construction enabling circuit designers to optimise circuit layouts and utilise earthed heat sinks for safety. Typical applications include dc motor drives, ac pwm drivesand ups systems. BNIB / NOS
