FEATURES:

• Terminals suitable for soldering or bolt connection
• High Wattage Applications
• Rugged lead free vitreous enamal coating
• Flame resistance coating
• All welded construction

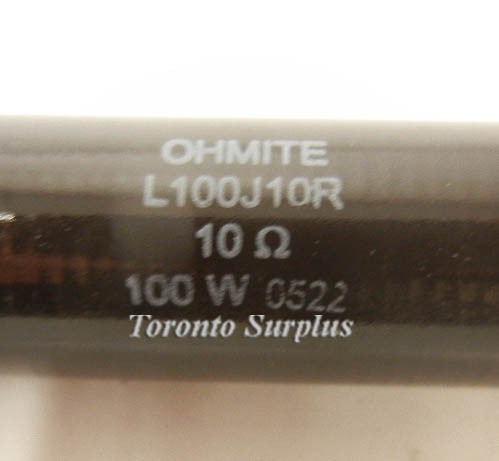

Core: Tubular ceramic.

Terminals: Solder coated radial lug. RoHS solder composition is 96% Sn, 3.5%Ag,0.5% Cu

Derating: Linearly from 100% @ +25°C to 0% @ +350°C.

Tolerance: ±5% 1Ω and over (J); ±10% under 1Ω (K)

Power rating: Based on 25°C free air rating.

Overload:  10 times rated wattage for 5 seconds.

Temperature coefficient: 1 to 20Ω: ±400 ppm/°C; Above 20Ω: ±260 ppm/°C

Dielectric Withstanding Voltage: 1000 VAC: 12 to 100 watt rating. 3000 VAC: 175 to 225 watt rating (Measured from terminal to mounting bracket )

Max. amps use the formula √P/R
