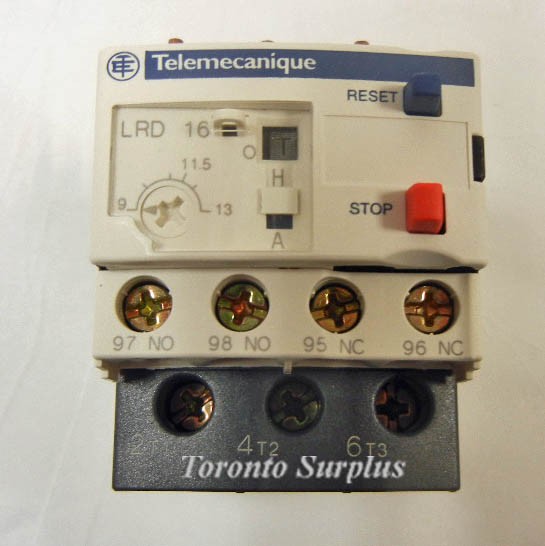

Relay application Motor protection


Network type AC DC
Overload tripping class Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range 9...13A
[Ui] rated insulation voltage
690V power circuit conforming to IEC 60947-4-1
600V power circuit conforming to UL
600V power circuit conforming to CSA
Network frequency 0...400 Hz
Mounting support Under contactor
Tripping threshold 1.14+/- 0.06 Ir conforming to IEC 60947-4-1
[Ith] conventional free air thermal current 5A for signalling circuit
Permissible current 0.22 A at 125 V DC-13 for power circuit
3 A at 120 V AC-15 for power circuit
[Ue] rated operational voltage 690V
[Uimp] rated impulse withstand voltage 6kV
Phase failure sensitivity Tripping current 130 % of Ir on two phase, the last one at 0
Temperature compensation -30...60°C
