The SQ Series is available with either three (SQ3) or four (SQ4) outputs and an adjustable or fixed time delay. The time delay period is the same for each output. This makes the SQ ideal for applications like dust collection, automatic lubrication, air drying, lighting displays, merchandising displays, duty cycling, and energy management.

Operation (Sequencing): Upon application of input voltage, Load 1 energizes for the selected ON time delay. At the end of this ON time delay, Load 1 de‑energizes and Load 2 immediately energizes starting another ON time delay. At the end of this ON time delay, Load 2 de‑energizes and Load 3 immediately energizes. At the end of the ON time delay for Load 3 (Load 4 for 4 output devices), Load 1 reenergizes and the cycle repeats. The sequential operation continues as long as input voltage is applied. Reset: Removing and re‑applying input voltage resets the sequence to the Load 1 ON time delay.


Mode Of Operation : Sequencing

Timing Range: 3 minutes

Mounting Type: Surface

Contact Rating: 1 Amps

Termination: .250in. Flat Bed

Adjustment Type: Fixed

Max Time: 3 Min

Time Tolerance: 10 percent

Coil Voltage 120VAc

Approvals CE; ULr

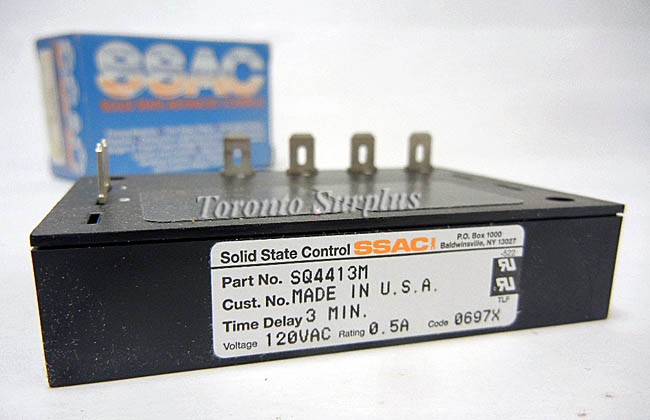

Comments: Four Outputs
