Product Description

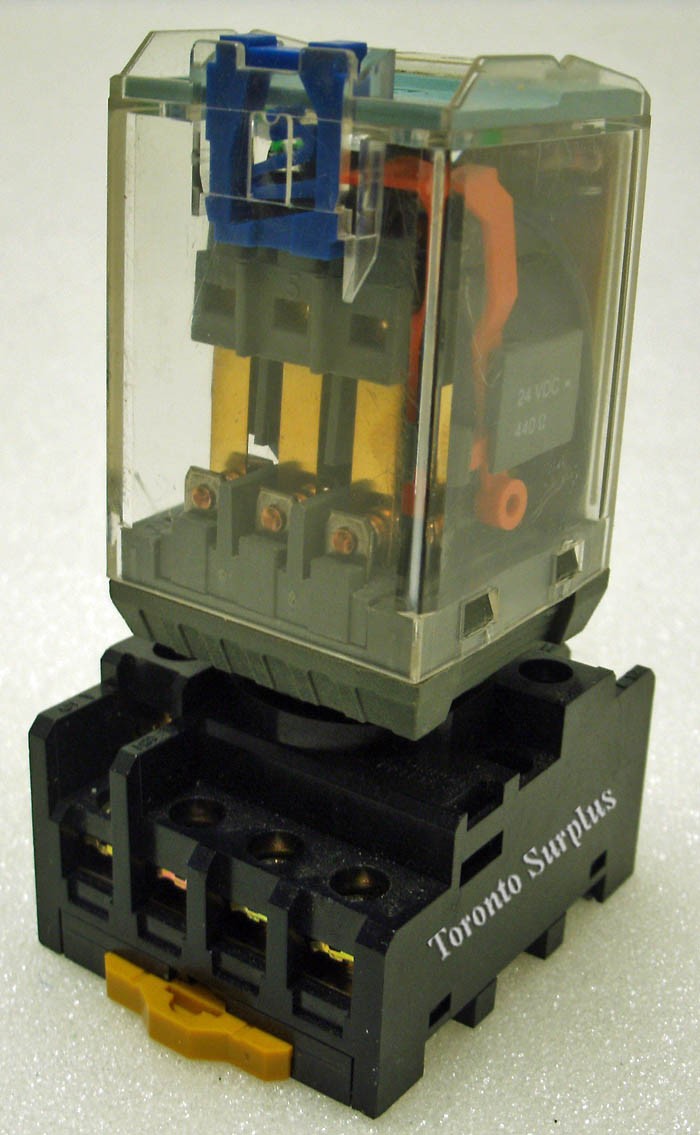

Type C3-A3x/ ... V
Standard relays, 3 change-over contacts
Maximum contact load 10 A/250 VAC 0,5 A/110 V DC1
10 A/30 VDC 0,2 A/220 V DC1
Recommended minimum contact load 1 mA/10 V
(with 10 μm Au)
10 mA/10 V
(standard contact
Contacts
Material Standard Code 0 AgNi
Optional Code 8 AgNi + 10 μ Au
Rated current 10 A
Switch-on current max. (20 ms) 30 A
Switching voltage max. 250 V
AC load 2,5 kVA
Ambient temperature operation/storage -40 (no ice)....60 ºC /-40 ... 80 °C
Pick-up time/bounce time 16 ms/ ≤3 ms
Release time/bounce time 8 ms/ ≤1 ms
Mechanical life AC: 10 Mill./DC: 20 Mill. switching cycles
AC voltage endurance at rated load ≥100000 switching cycles
Switching frequency at rated load ≤1200/h
Protection class IP40
