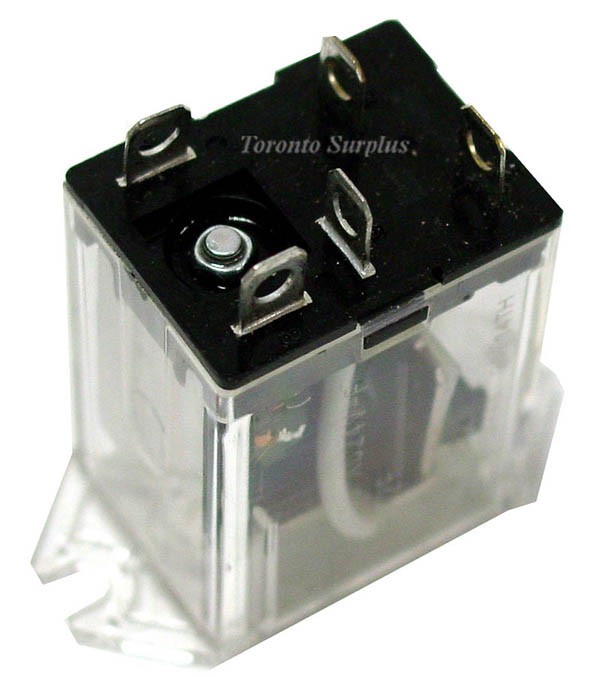

    Panasonic AP5512F / HL1-HTM-AC24V-F / HL1HTMAC24VF HL Relays BRAND NEW / NOS

    Double click on above image to view full picture

    More Views

    • Panasonic AP5512F / HL1-HTM-AC24V-F / HL1HTMAC24VF HL Relays BRAND NEW / NOS
    • Panasonic AP5512F / HL1-HTM-AC24V-F / HL1HTMAC24VF HL Relays BRAND NEW / NOS

    Panasonic AP5512F / HL1-HTM-AC24V-F / HL1HTMAC24VF HL Relays BRAND NEW / NOS


    Part Number: sku7793
    Contact for price
    Add Items to Cart
    Quantity in Stock: 27

    Ask a Question

    Product Description

    Panasonic AP5512F / HL1-HTM-AC24V-F / HL1HTMAC24VF HL Relays BRAND NEW / NOS

    Features

    • Large capacity.Compact size.
    • Foot print compatible with competitive types.

    Specifications:

    Protective construction: Dust cover
    Terminal Shape: TM
    Foreign Standards: UL/CSA
    Coil Voltage: 24
    Nominal Operating Power: 1.3VA(50Hz) / 1.2VA(60Hz)
    Pick-up Voltage: 19.2V AC
    Drop out Voltage: 7.2V AC
    Nominal Switching capacity (resistive load): 15A, 125V AC
    Min. Switching Capacity: 100mA 5V DC
    Contact Arrangment: 1c
    Contact Material: BBM
    Contact Material: AgSriO2
    Mechanical life (min. operation): 5x107
    Electrical life: 5 x 105
    Rated Voltage (Contact-Contact) 1000Vrms
    Rated Voltage (Contact-Coil) 2000Vrms
    Ambient Temperature: -50deg to +70deg
    Operating Function: SIngle side stable
