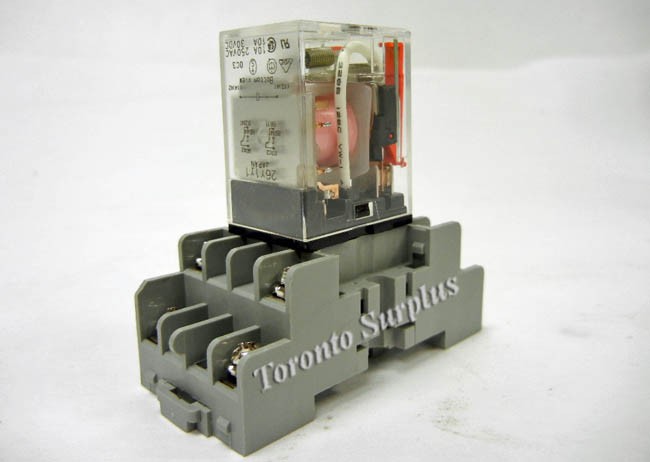

Product Description
- Arc barrier standard on 4-pole Relays.
- Dielectric strength: 2,000 VAC (coil to contact)
- Environment-friendly cadmium-free contacts.
- Safety standard approvals obtained
- Max. Switching Current: 2-pole: 10 A, 4-pole: 5 A
- Ambient temperature when operating -55°C to +70°C ( with no icing )
- Ambient Humidity when operating 5% to 85%
- 100 mΩ max contact resistance
- 20 ms max operating time
- 1,000 mΩ min ( At 500 VDC ) for insulation resistance
