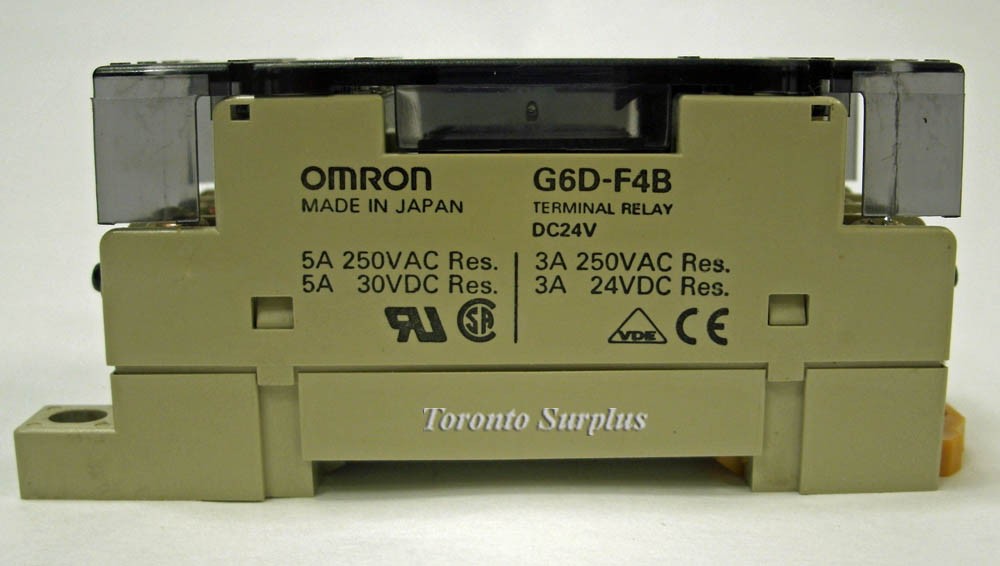

Product Description
Rated load: 3 A at 250 VAC, 3 A at 30 VDC
Rated carry current: 5 A
Max. switching voltage: 250 VAC, 30 VDC
Max. switching current: 5 A
Max. permissible capacity (reference value): 1,250 VA, 150 W
Insulation resistance: 1,000 MΩ min. (at 500 VDC)
Dielectric strength: 2,000 VAC, 50/60 Hz for 1 min between coil and contacts.
1,500 VAC, 50/60 Hz for 1 min between contacts of different polarity
750 VAC, 50/60 Hz for 1 min between contacts of same polarity
Impulse withstand voltage (betweencoil and contacts) :4,000 V (1.2 × 50 μs)
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance Destruction: 500 m/s2
Malfunction: 100 m/s2
Endurance Mechanical: 20,000,000 operations min. (at 18,000 operations/hr)
Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load)
100,000 operations min. (3 A at 30 VDC, resistive load) (at 1,800 operations /hr)
Ambient temperature Operating: –25°C to 55°C (with no icing)
Ambient humidity Operating: 45% to 85%
Weight Approx. 65 g
