The MicroLogix 1000 family provides small, economical programmable controllers. They are available in configurations of 10 digital I/O (6 inputs and 4 outputs), 16 digital I/O (10 inputs and 6 outputs), 25 I/O (12 digital inputs, 4 analog inputs, 8 digital outputs, and 1 analog output), or 32 digital I/O (20 inputs and 12 outputs) in multiple electrical configurations of digital I/O. The I/O options and electrical configurations make them ideal for many applications.

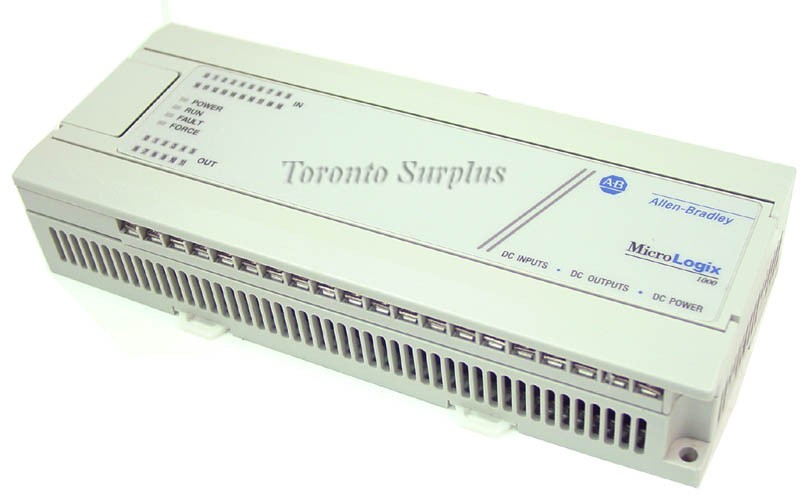

MicroLogix 1000 1761-L32BBB (Total Number of I/O: 32)

• Line Voltage/Power Supply: 24V dc
• Number of Inputs: (20) 24V dc
• Input Type: 24V dc
• Number of Outputs: (10) MOSFET sourcing, (2) relay (two invidually isolated relays per unit)
• Output Type: 24V dc
• High Speed I/O: (1) 6.6 kHz input
• Power Consumption: 7W
• Power Supply Inrush Current: 20 A for 4 ms (max)
• Memory (in user words) user Program/user Data: Up to 1 kB combinged
• Nonvolatile program and data: EEPROM
