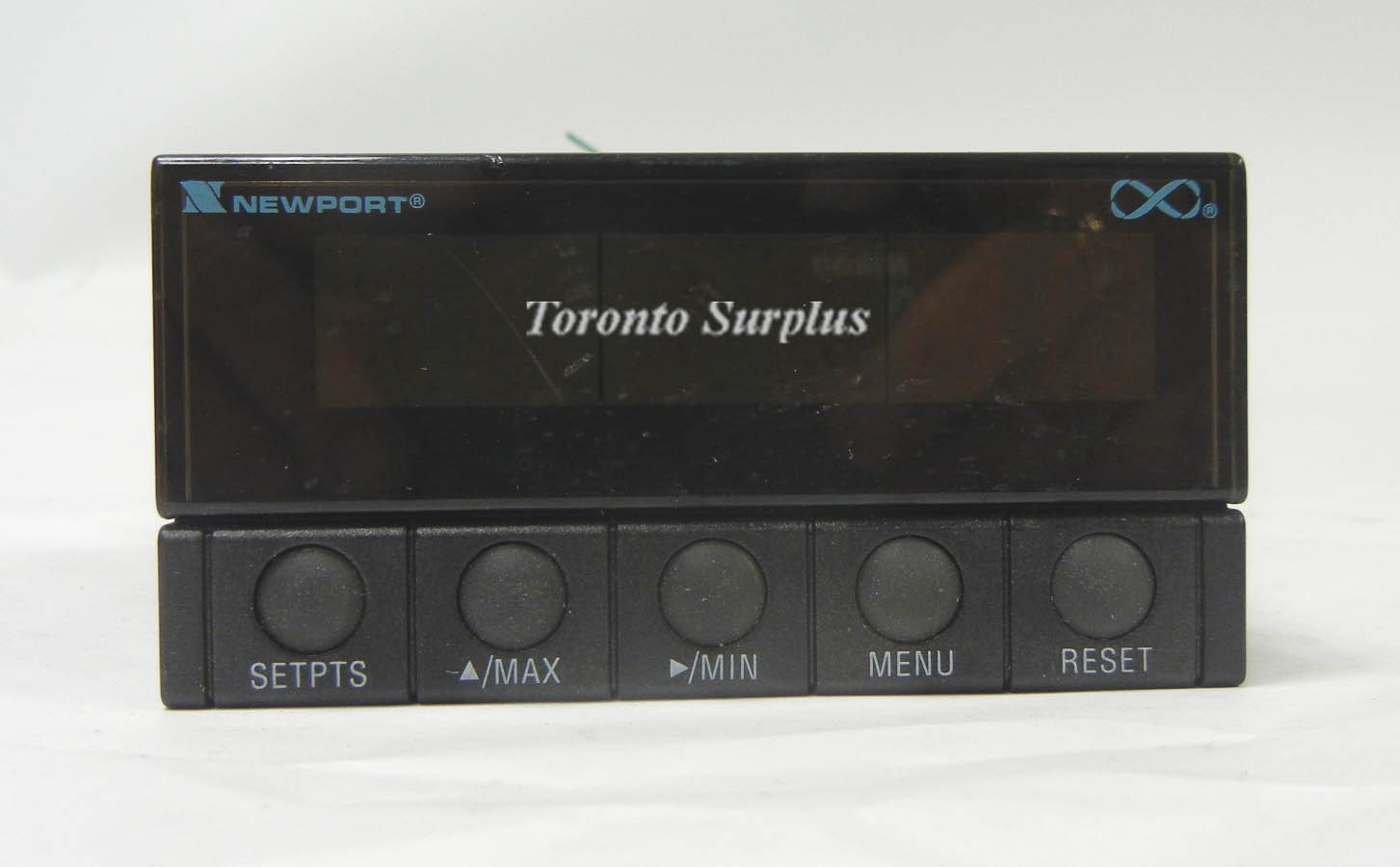

    Newport Electronics INF-P-0-3-00-SP-FS-MV /  INFP0300SPFSMV Infinity Process Panel Meter DC Current, Voltage, Potentiometer

    Double click on above image to view full picture

    More Views

    • Newport Electronics INF-P-0-3-00-SP-FS-MV /  INFP0300SPFSMV Infinity Process Panel Meter DC Current, Voltage, Potentiometer
    • Newport Electronics INF-P-0-3-00-SP-FS-MV /  INFP0300SPFSMV Infinity Process Panel Meter DC Current, Voltage, Potentiometer

    Newport Electronics INF-P-0-3-0-0-C-2 / INFP0300C2 Infinity Process Panel Meter DC Current, Voltage, Potentiometer, 115V, 50/60 Hz


    Part Number: sku10553
    Contact for price
    Add Items to Cart
    Quantity in Stock: 2

    Ask a Question

    Product Description

    This Process meter is part of a complete line of process indicators/ controllers, offering exceptional performance.
    The process meter is front panel programmable to accept 0-20 and 4-20 mAdc current inputs, unipolar and bipolar DC voltage inputs and potentiometer inputs. The meter will accept inputs from most of the process sensors in use today such as transmitters, pressure transducers, and potentiometers.


    The following is a list of features of the meter.
    • 6-digit LED display in red
    • 0.005% accuracy of reading
    • 12 DC input ranges: 0-100 mV, 0-1 V, 0-5 V, 1-5 V, 0-10 V, 0-100 V,
    ±50 mV, ±500 mV, ±5 V, ±50 V, 0-20 mA, or 4-20 mA
    • 10 or 24 V dc sensor excitation
    • Peak & Valley detection and memory
    • External Tare
    • Up to 13 readings per second
    • NEMA 4 Front Panel/IP65
    • Non-volatile memory without battery back-up
    • 115 Vac, 50/60 Hz, 230 Vac, 50/60 Hz power supply
