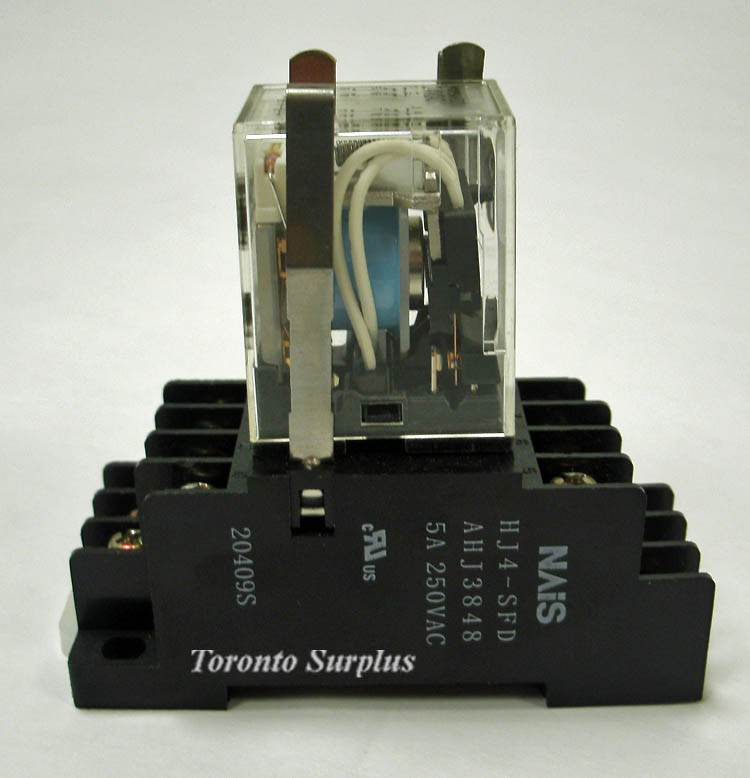

Product Description
Contact resistance100 mΩmax.
Operate time20 ms max.
Release time20 ms max.
Max. operating frequency
Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
Insulation resistance1,000 MΩmin. (at 500 VDC)
Dielectric strength2,000 VAC, 50/60 Hz for 1.0 min (1,000 VAC between contacts of same polarity)
Vibration resistanceDestruction: 10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude)Malfunction: 10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude)
Shock resistanceDestruction: 1,000 m/s2Malfunction: 200 m/s2
Ambient temperature
Operating: –55°C to 70°C (with no icing)
Ambient humidity
Operating: 5% to 85%
