Product Description

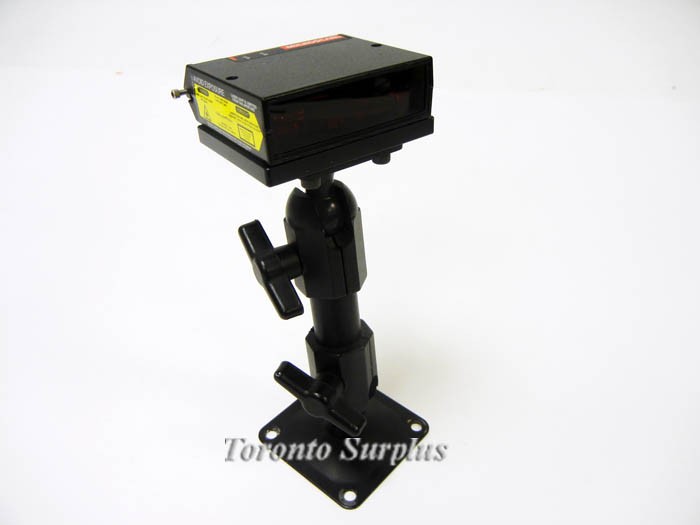

The VS-310 is the smallest, lightest, and most affordable fixed-mount scanner
offered by Microscan.
Features include wide scan angle with two optional scanning patterns, two
programmable outputs, bracketless top or bottom mounting, all enclosed in a
compact IP54 rated housing weighing only 3 ounces. Set up and configuration is also fast and easy with Microscan’s patented, Window’s based ESP software
(Easy Setup Program).
The VS-310’s compact size combined with its feature set make it ideally suited for
OEM applications or other space constrained environments.
SYMBOLOGIES
The VS-310 comes standard with all widely used linear barcode symbologies, including:
- Code 39
- Codabar
- Interleaved 2 of 5 • Code 93
- Code 128
SCANNING PARAMETER
Type:10-sided, single line or raster,spinning mirror
Scan rate: High Density - 60 scans persecond. Low Density: - 100 scans per second
Scan width: 4" (10.16 cm) @ 2.75"(6.99 cm) from window (7.5 mil and larger bar widths)
Pitch: ±50°
Skew: ±40°
Label contrast: 25% min. absolute dark to light differential at 670 nm wave-length
LASER LIGHT
Type: Semiconductor visible laser diode (670 nm nominal)
Safety class: CDRH Class II
