Product Description
For Solenoid Valves with FM Approval for Hazardous Locations, Division 2

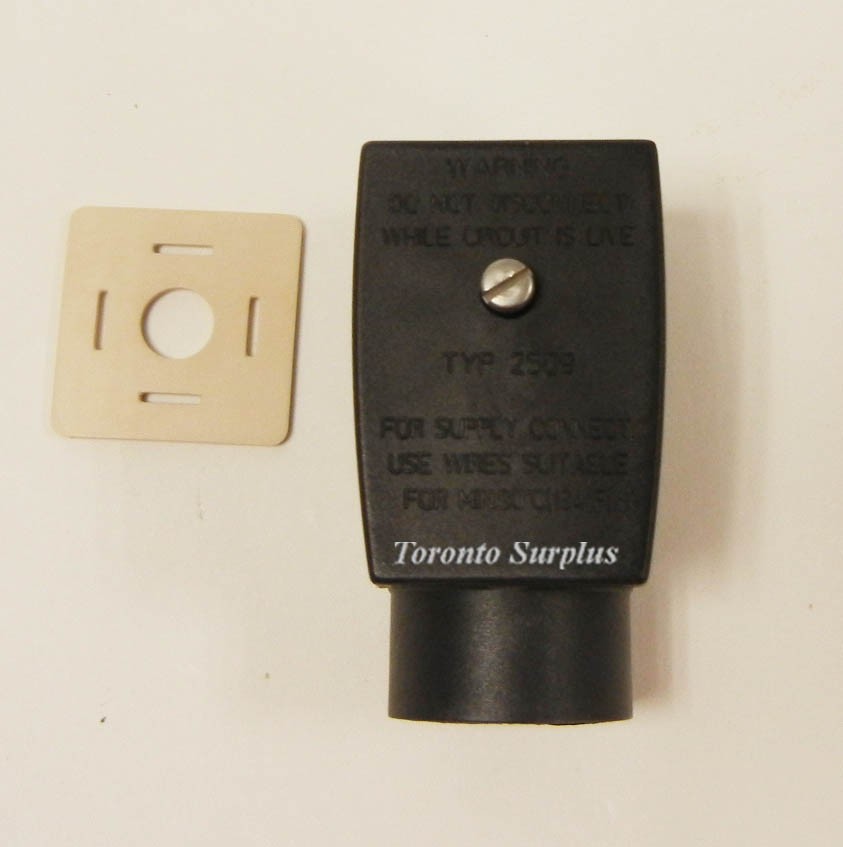

Cable Plug for Solenoid Valves
Process Specification
Body material PA (polyamide)
Contact material copper alloy, silver plated
Connection thread 1/2” NPT
Cable outlet vertically to the plug bottom
- can be rotated by 4 x 90° after removal
Cable diameter (incl. isolation)≤ 0.118”
Isolation between cable plug and coil gasket (NBR) 0.059”
Range of cross-section 0.029 – 0.078 inches
Ambient temperature range +14 up to +131°F
Poles 2 pole + protective ground
Nominal voltage 0 to 250 V
Functional display with LED, yellow
Protection class NEMA 4 (IP 65)
Flammability class to UL 94 5 V
