Datacom Textron 54653 Optical Loss Measuring System

Length

Range: 6562ft (2000m)

Resolution: 1ft (1m)

Accuracy:
0-1000ft (0-305m):
                       +/-2 ft (0.6m)   +/-2%     +/- IOR uncertainty

1001-6562 ft (305m-2000m):
                      +/- 2ft (0.6m)   +/-3%      +/- IOR uncertainty

Propagation Delay
0- 10,000 ns

Optical Loss
Dynamic Range:
                     13000nm: +3dBm to -55 dBm
                         850nm: +3 dBm to -50 dBm


Resolution: 0.01 dB
Accuracy: +/- 0.3 dB @ -20 dBm

Detector
InGaAs Type

Environmental
Humidity: 10-90% RH (non-condensing)
Temperature:
                                 0 to 50 degrees celsius (32 to 122 degrees fahrenheit) operating
                                -20 to 60 degrees celsius (-4 to 140 degrees fahrenheit) storage

Weight: 5.1 oz (145.5g)

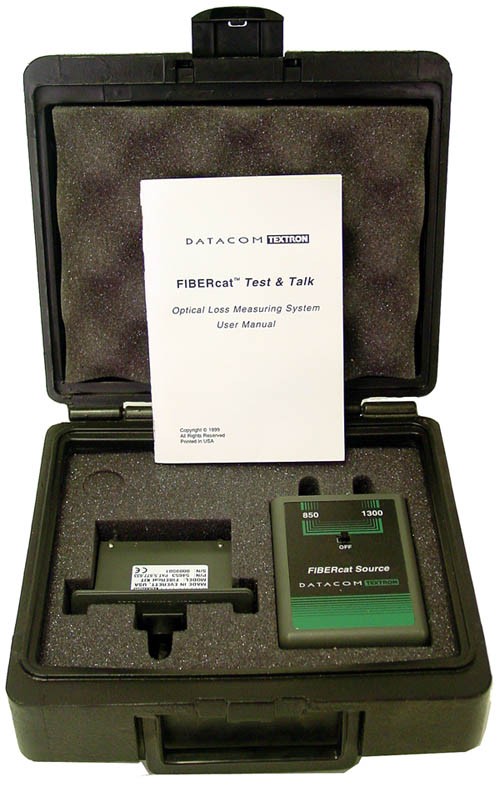

The FIBERcat Test and Talk certifies multimode fiber in pairs by comparing bi-directional dual-wavelength 850/1300nm loss, length and propagation delay measurements against several industry standards. FIBERcat Test & Talk also provides interpretation-free/fail results.
