Product Description

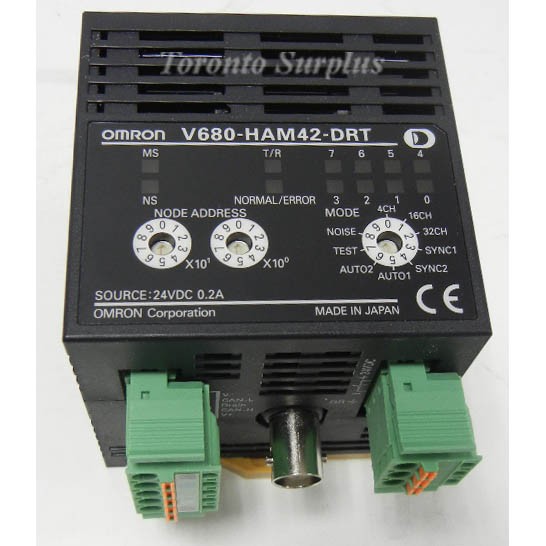

V680-series DeviceNet-compatible Slaves for RFID Systems. Read and Write Up To 58 Bytes
- Connectable Antennas One channel (V680-HS@@)
- Rated voltage 24 VDC (−15% to 10%) including 10% ripple (p-p)
- Power consumption 4 W max. (Current consumption of 200 mA max. at power supply voltage of 24 VDC)
- Ambient operating temperature −10 to 55°C (with no icing)
- Ambient storage temperature −25 to 65°C (with no icing)
- Ambient operating humidity 25% to 85% (with no condensation; ambient operating temperature is 40°C max. at humidity of 85%)
- Insulation resistance 20 MΩ min. (at 500 VDC) between all terminals excluding the ground terminal and the case Dielectric strength 1,000 VAC (50/60 Hz) for 1 minute between all terminals excluding the ground terminal and the case
- Mounting DIN Track
