Product Description
- Sensing distance BGS White or black paper (100 × 100 mm): 20 mm to set distance
- FGS White paper (100 × 100 mm): Set distance to 200 mm min.Black paper (100 × 100 mm): Set distance to 160 mm min.
- Setting range White paper (100 × 100 mm): 40 to 200 mmBlack paper (100 × 100 mm): 40 to 160 mm
- Differential travel 10% of set distance max. (Refer to Datasheet.)
- Reflectivity characteristic (black/white error) 10% of set distance max.
- Light source (wavelength) Red LED (680 nm)
- Power supply voltage 12 to 24 VDC ±10%, ripple (p-p): 10% max.
- Current consumption 30 mA max.
- Control output Load power supply voltage: 26.4 VDC max., Load current: 100 mA max. (residual voltage 1 V max.), Open collector output (NPN or PNP depending on model)Light-ON/Dark-ON switch selectable
- BGS/FGS selection BGS: Open or connected to GNDFGS: Connected to Vcc BGS: Open or connected to GND
- Protection circuits Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention
- Response time Operate or reset: 1 ms max.
- Distance setting 5-turn endless adjuster
- Ambient illumination(Receiver side) Incandescent lamp: 3,000 lx max.; Sunlight: 10,000 lx max.
- Ambient temperature range Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
- Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
- Insulation resistance 20 MΩ min. at 500 VDC
- Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
- Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
- Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
- Degree of protection IP67 (IEC 60529)
- Indicators

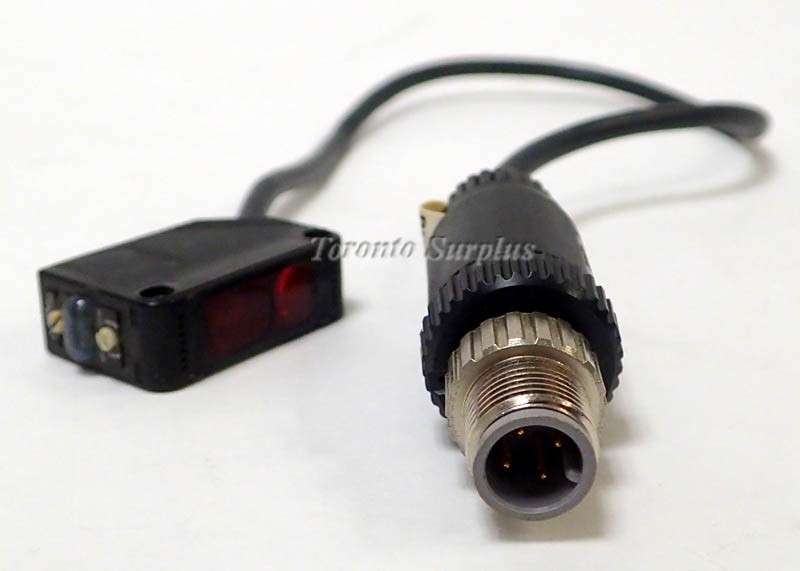

M12 4 position pigtail 0.3M / 11"
