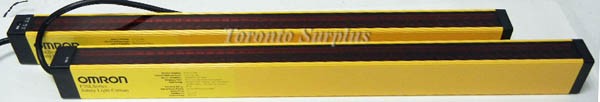

Omron F3SL-A0523P30-L and D, F3SLSeries Safety Light Curtain 523mm Emitter & Transceiver with  Accessories Kit

Sensing Distance: 0.3m to 20m

Effective Aperture Angle: + 2.5 degrees (at 3m)

Optical Resolution: 30mm / 52mm /74mm

Response Time: 40ms max.

Input Rating: 24VDC +20%, 285mA max. for emitter
                        24VDC +20%, 1.4A max. for receiver


Enclosure Rating: IP 65

Safety Class: 4

Temperature: 0- 55 degrees celsius

Environmental: Type 12

Projected Height: 523mm

Accessories Kit

• Test rod, mounting brackets (upper/lower)
• operation manual
• special hex wrench for program button access
• test load resistors (1 kΩ, 2 resistors)
• surge protector (2)
