SC-2056– The SC-2056 adapts the 100 I/Opins of the AT-MIO-64E-3 to several 50-pin
26-pin I/O connectors compatible with analog and digital signal conditioning accessories.

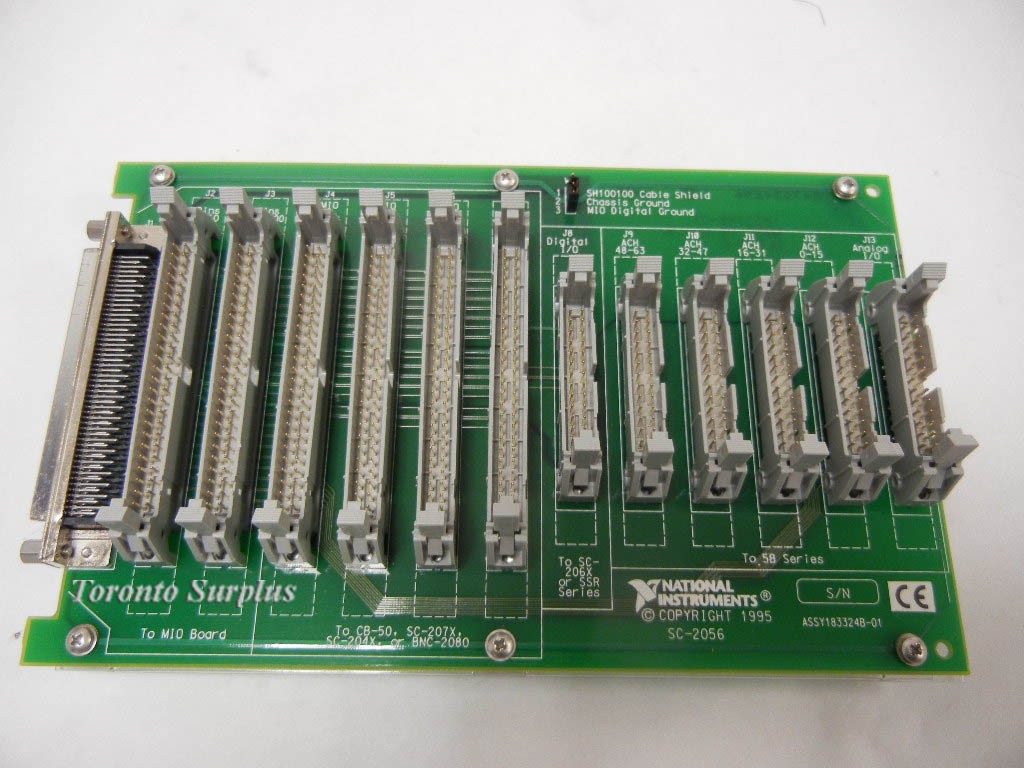

The SC-2056 routes the 64 analog inputs ofthe AT-MIO-64E-to four 26pin connector compatible with the 5B Series 16-channel backplane. A fifth 26-pin connectors routes 14 analog inputs (ACH0-ACH13) and the two analog output channels to a 5B backplane.

The SC-2056 also routes the pins of theAT-MIO-64E-3 to four 50-pin connectors
that are compatible with the MIO-16I/O connector.
You can use these connectorswith MIO accessories, such as theBNC-2080, SC-20-R
TD, SC-2043-SG,or CB-50. When using the SC-204X series,the NI-DAQ driver software configurationutility will configure all analog input channels of the AT-MIO-64E-3 for differential mode ifusing the SC-2042-RTD, or single-ended
mode if using the SC-2043-SG. Therefore,you cannot use both an SC-2042-R
TD and anSC-2043-SG with a single AT-MIO-64E-3.The digital, analog output, and timing I/Ochannels of the AT-MIO-64E-3 are wired in parallel to all four 50-pin connectors
